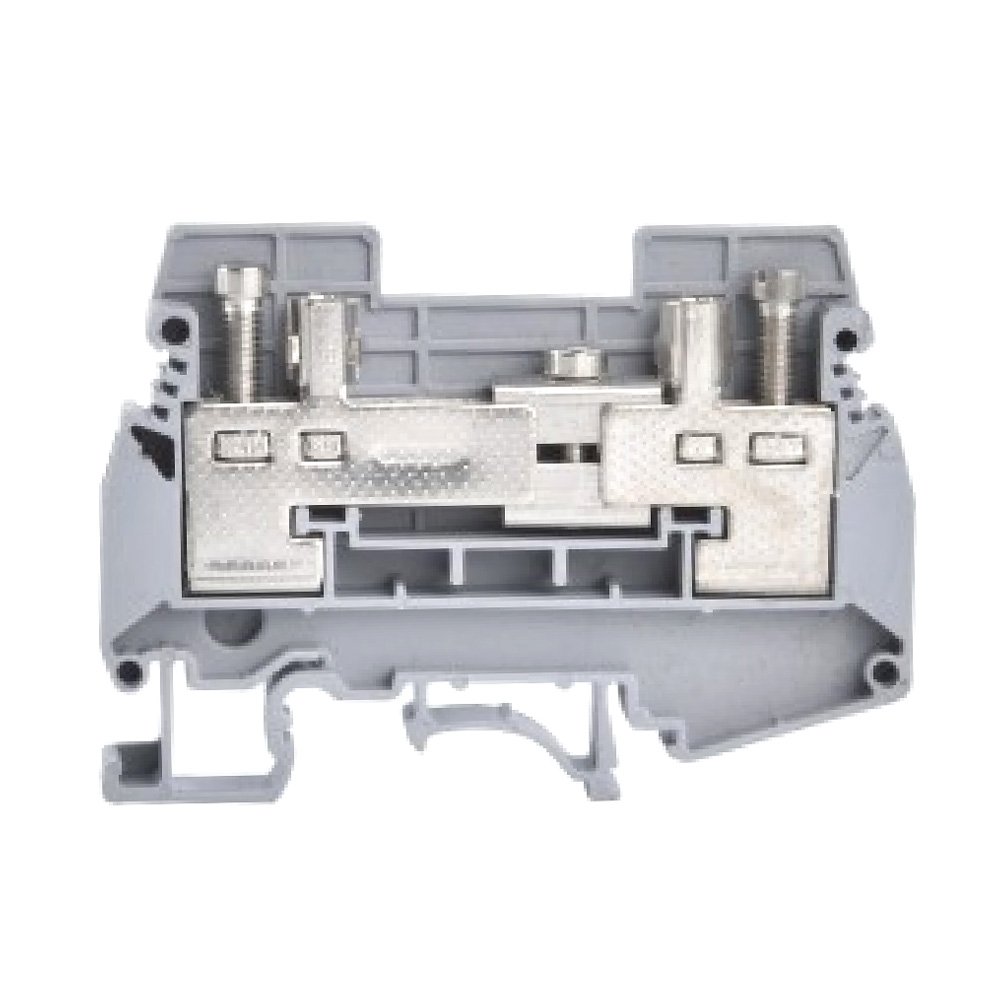

UK-URTK-6S Terminal Blocks

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements, the screw connection has also proven itself in the wiring of large conductor cross sections.
1. The UK universal screw terminal block series has the typical features that are decisive for practical applications.

2. Made from engineering flame-resistant nylon PA66 with brass conductor.

3. With a universal foot that can be installed on Din Rail NS 35.

4. It can connect two conductors with ease, even large conductor cross sections are not a problem.

5. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

6. For these multi-level terminal blocks, fixed bridge and test sockets can be used on both levels. Space saving thanks to compact design; Clear arrangement thanks to marking all of the terminal points.

7. All types of accessories: End cover, End Stopper, Partition plate, Separating plate, Marker strip, Fixed bridge, Insertion bridge, etc.
