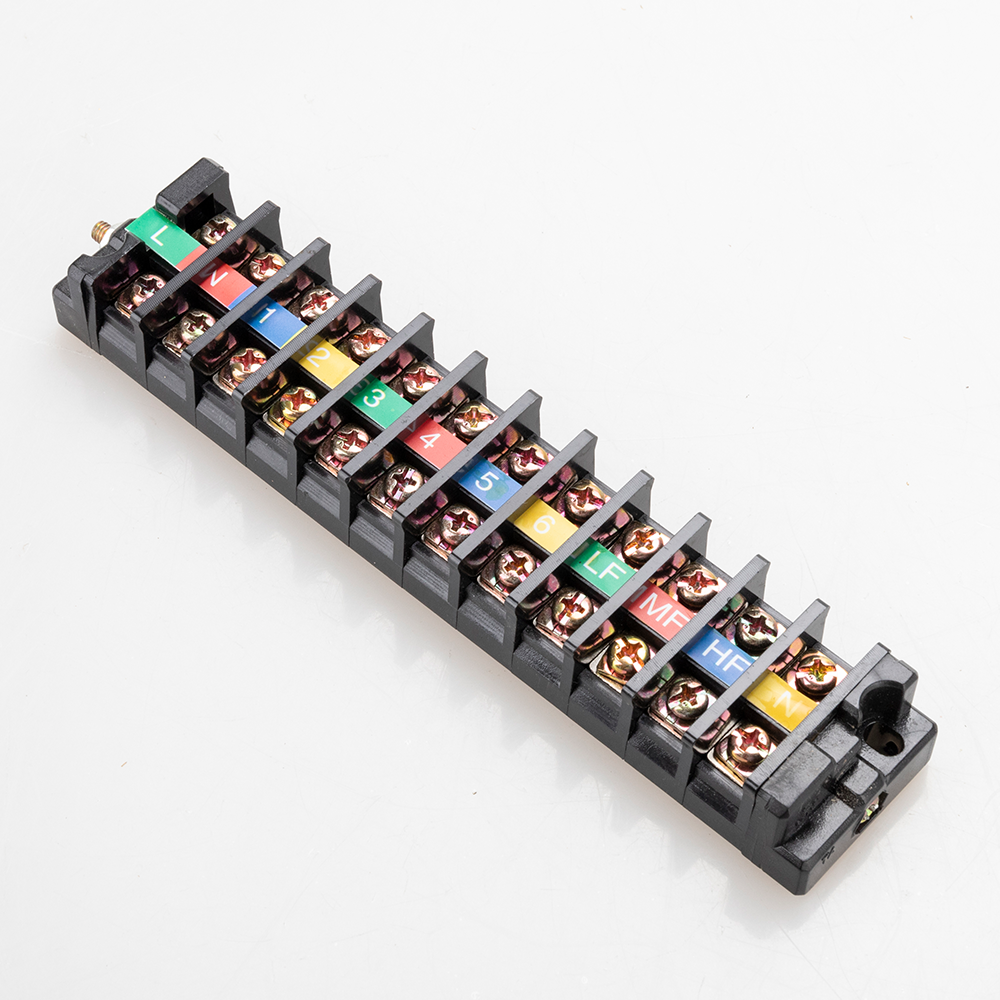

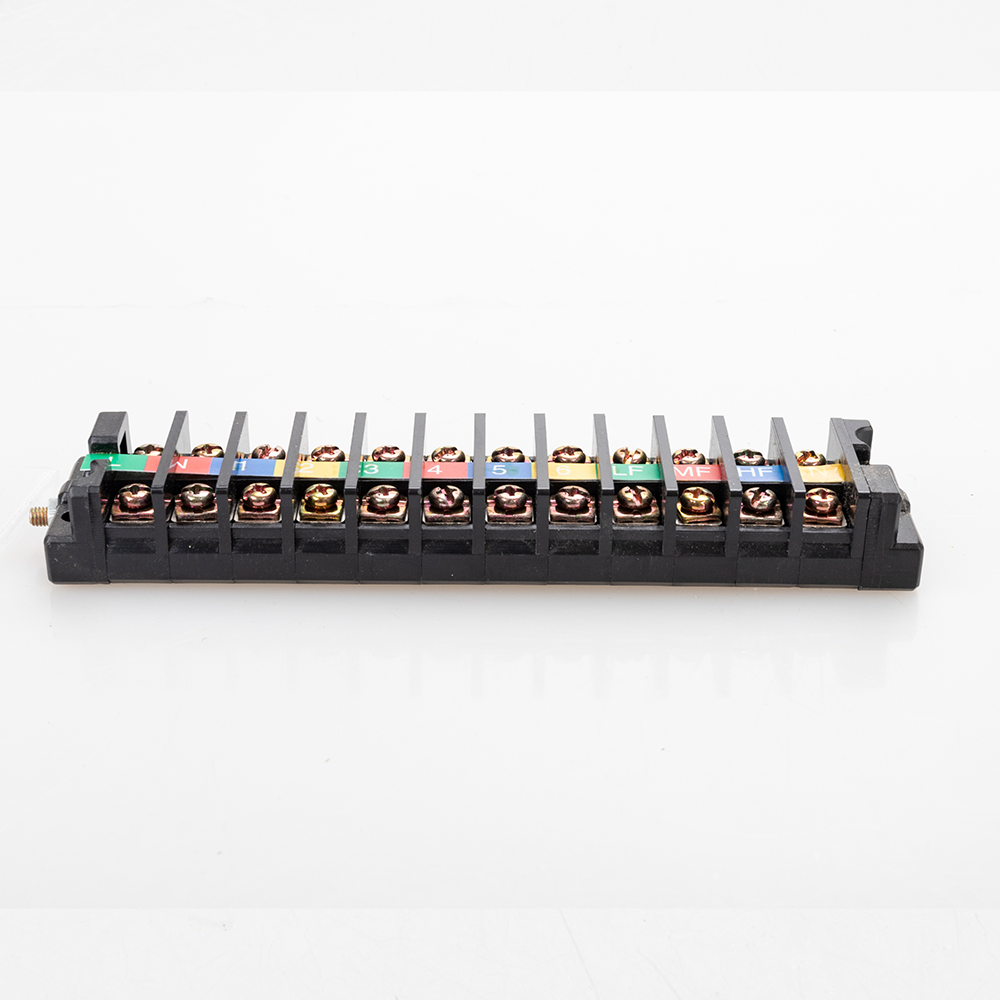

This TB Series screw-fixed barrier terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder, or splice. By this method, wiring can be adjusted at anytime just as easily as it was the first time.
| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | TA-2012 |
| Color | black |
| Connection Method | Screw Connection |
| Rated Current | 20A |
| Rated Voltage | 600V |
| Dimensions | 167.5×21×34 |
| Metal Material | Brass |
Product Description：
In the electric connection, using the terminal as the transition connection is a common connection method. In various connection terminal structures, using the plate connection method, a long-standing practice test, a safe and reliable connection way. The correct choice of wiring mode mainly depends on the actual use needs and the use of the requirements of the environmental conditions. Plate crimp wiring is direct, convenient, solid, and reliable.
Advantage:
1. Reasonable installation design, strong versatility, and the TA type can be installed.
2. The shell adopts flame-retardant material, which reduces the hidden danger to safety and is safer for long-term use.
3. Copper sheet is selected as a conductive material, with good conductivity and low resistivity.

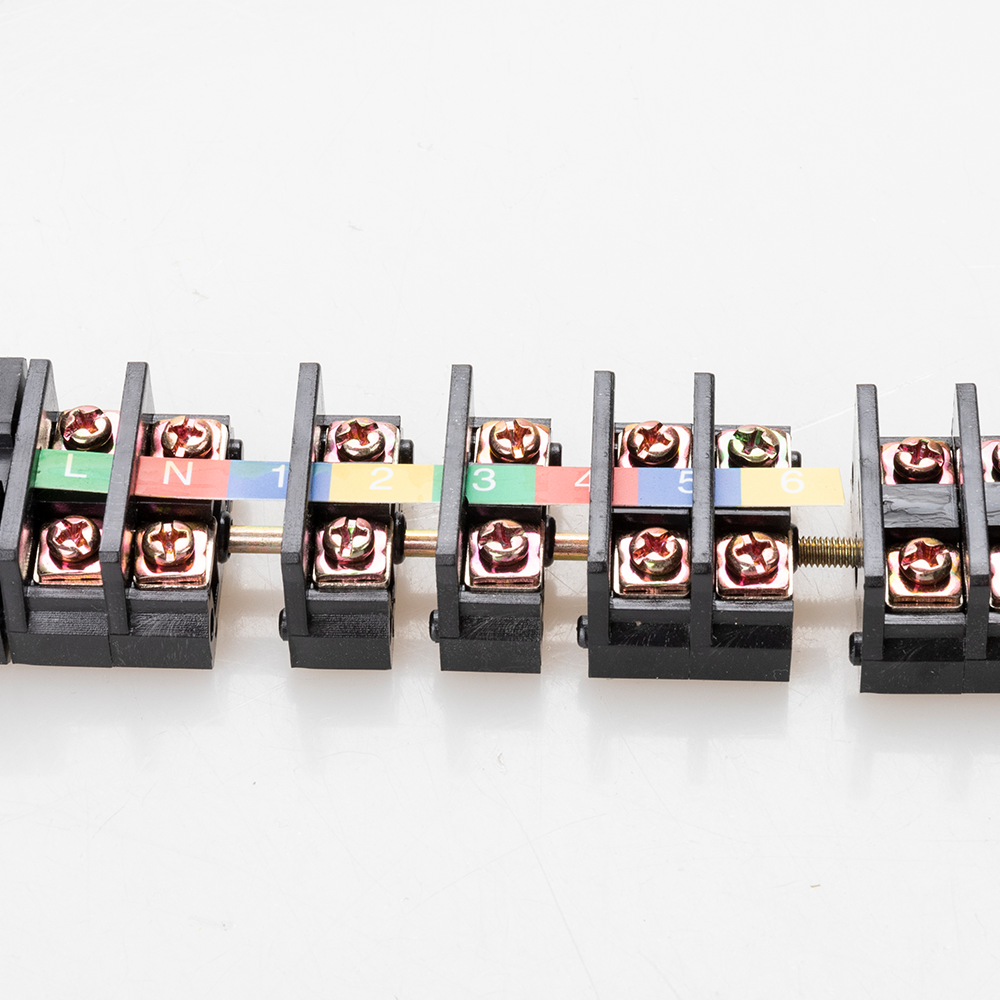

4. Combined assembly design, according to the actual increase or decrease in the number of terminals.
Pure copper material at the connection point, Thick enough to be heavy and conductive.
Flame-retardant housing Waterproof, dustproof, oil-
proof.
Thickened pure copper conductive sheet, corrosion-resistant, reliable contact, strong conductivity.
Colored zinc steel screwHigh hardness, high torque, non-slip.
1：Peel off the insulation layer of the wire and insert the wire into the terminal.
2：Use a screwdriver to rotate counterclockwise to open the crimping frame.
3：Put the wire into the depth of the crimping frame.
4：Tighten the crimping frame clockwise and snap it tightly.
