Insert and Press Two-second Connection. Just close the booster after inserting the wire, simple and practical, saving a lot of time.
The board opens easily without requiring force, and it won’t hurt your hands with no pain sensation during the rebound!
| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | SLU-2.5 |
| Color | grey |
| Rated Current | 24A |
| Rated Voltage | 250V |
| Mounting | Din rail |
| Material of Shell | Nylon PA66 |
| Metal Material | Copper conductive strip |
| Dimensions | 34.6×23.8×5.5 |
| Operating temperature | -20℃-105℃ |
| Wire Range | 0.2-4.0mm² |
Specification

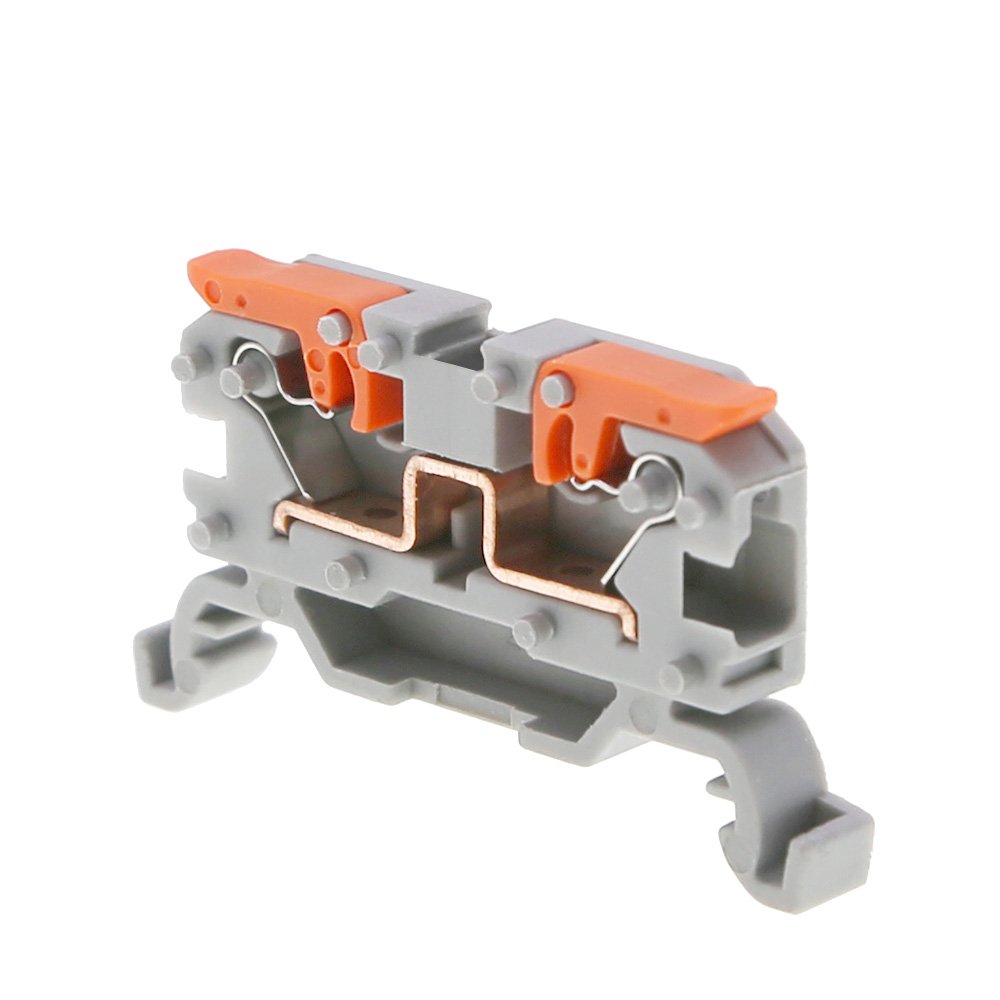

Din-rail Push Wire Connector with lever
1. Color and poles available for customization
2. Screwless type push wire connector
3. Can rewirable
4. Brass/Tin-plated insert material
5. 1 to more poles
SLQK/SLP/SLU features a painless handle design for quick wire connection, suitable for both solid and stranded wire.1 pole or 2-N poles can be customized. They can match the shortening bar & number bar.
Insert and Press Two-second Connection. Just close the booster after inserting the wire, simple and practical, saving a lot of time.
The board opens easily without requiring force, and it won’t hurt your hands with no pain sensation during the rebound!
Suitable for multiple types of cables, Versatile for both rigid and flexible wires. Three types of wire gauges are available, and both single-strand and multi-strand wires can be used.
