| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | SLP, SLP-QU, SLP-QU-With baffle, SLP-With baffle, SLQK, SLU, SLU-With baffle |
| Color | black, Blue, green, orange, Red, yellow |
| Rated Current | 24A, 32A |
| Rated Voltage | 250V, 400V |
| Mounting | Din rail |
| Material of Shell | Nylon PA66 |
| Metal Material | Copper conductive strip |
| Operating temperature | -20℃-105℃ |
| Wire Range | 0.2-4.0mm² |

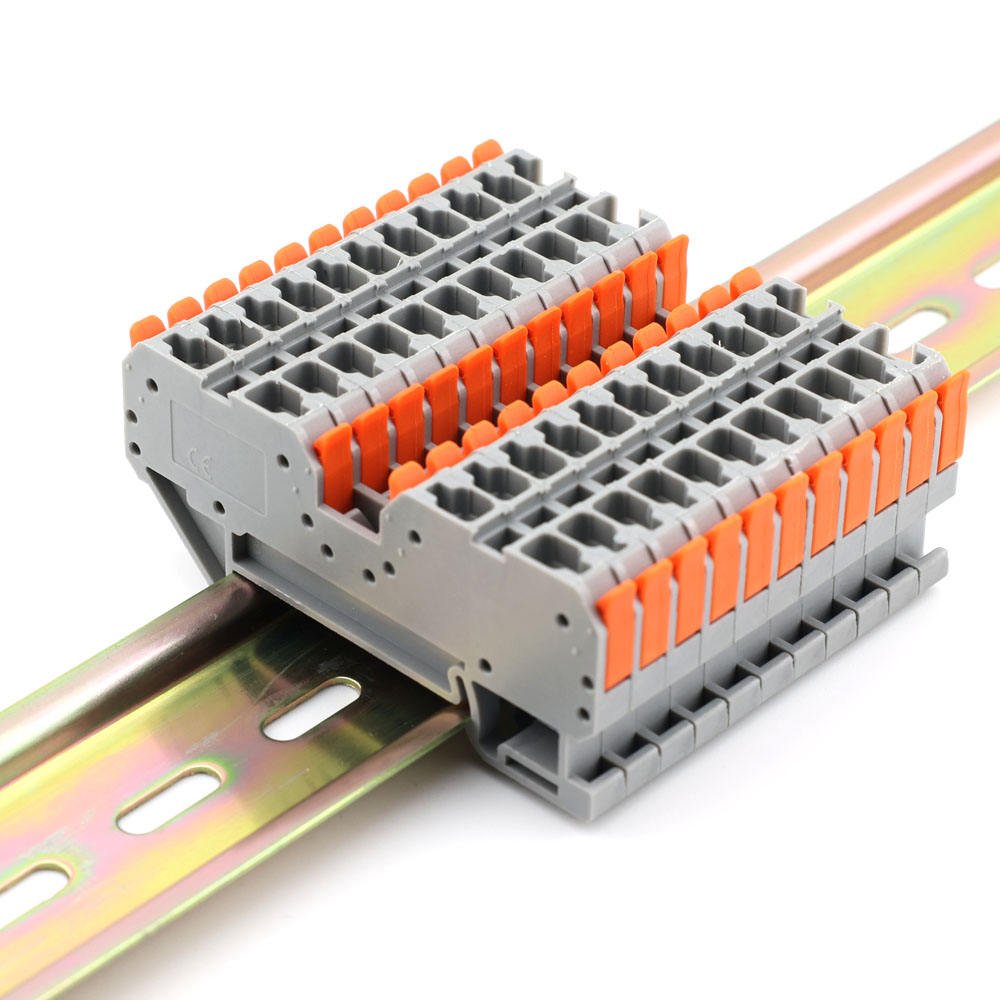

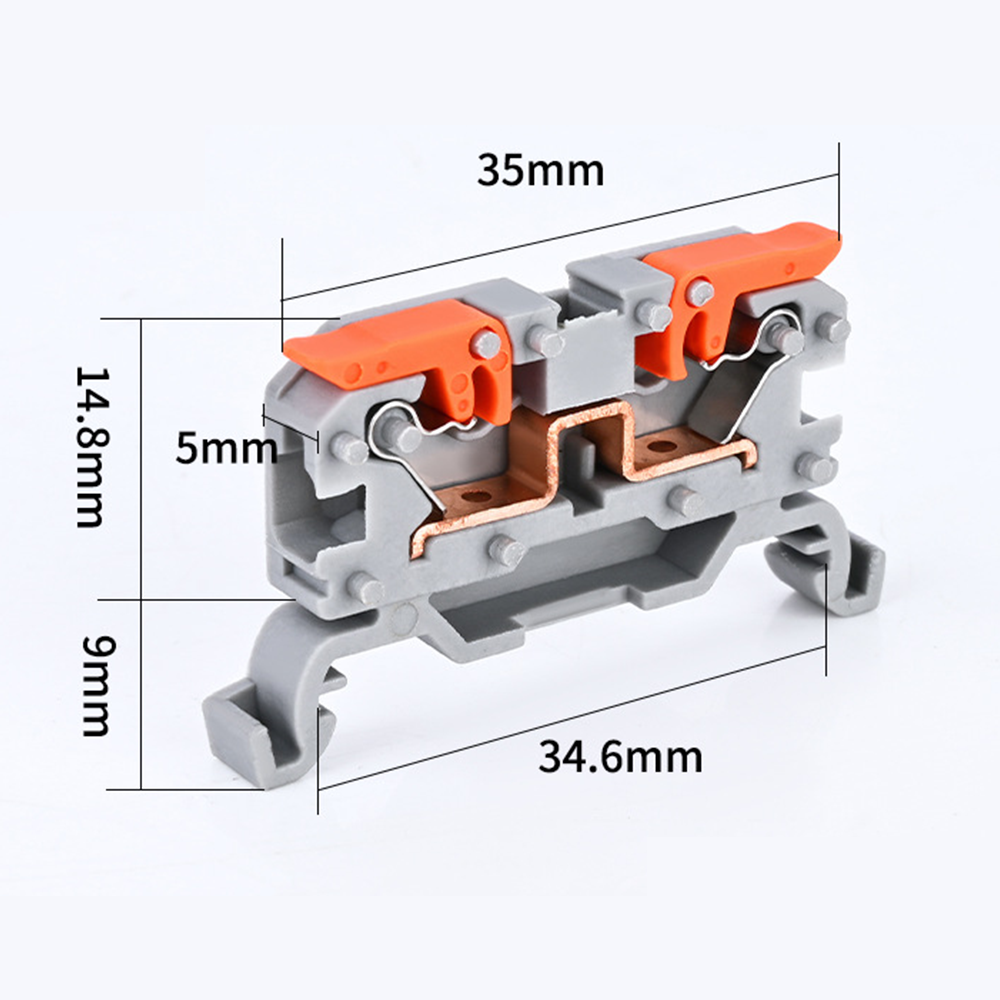

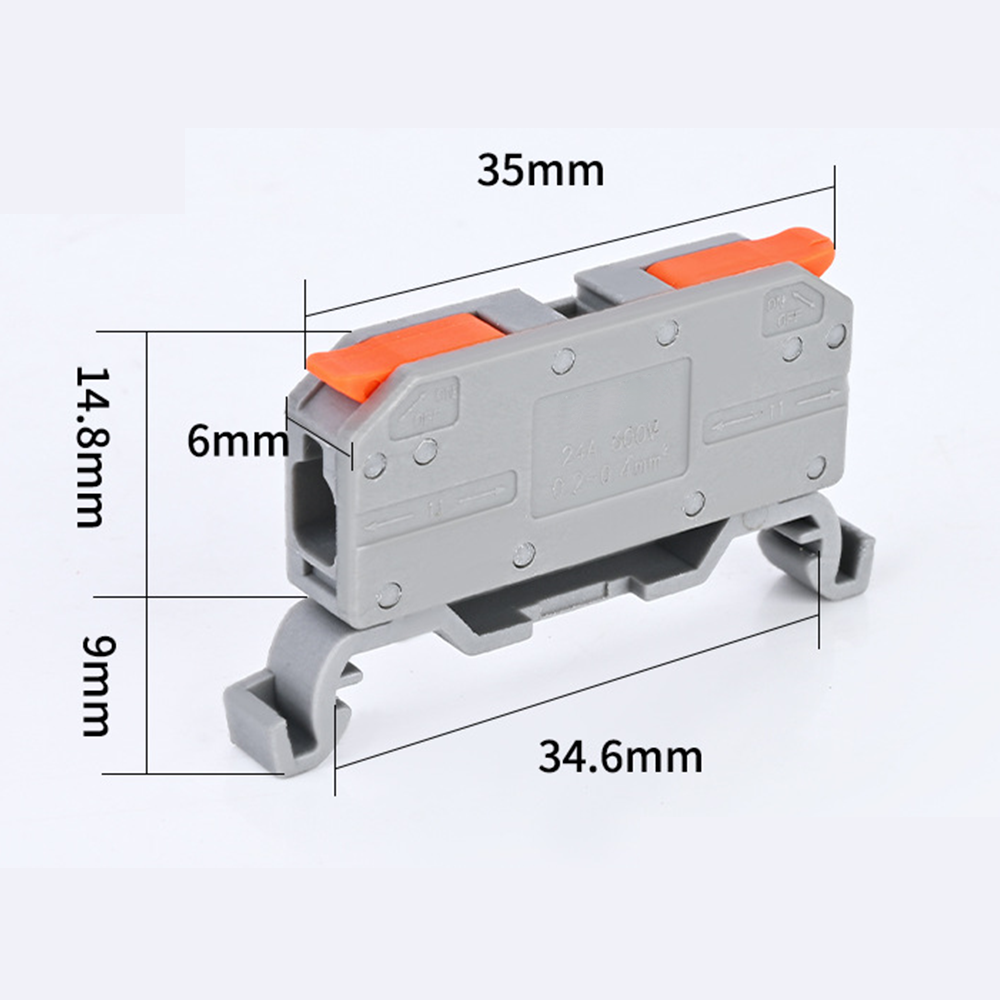

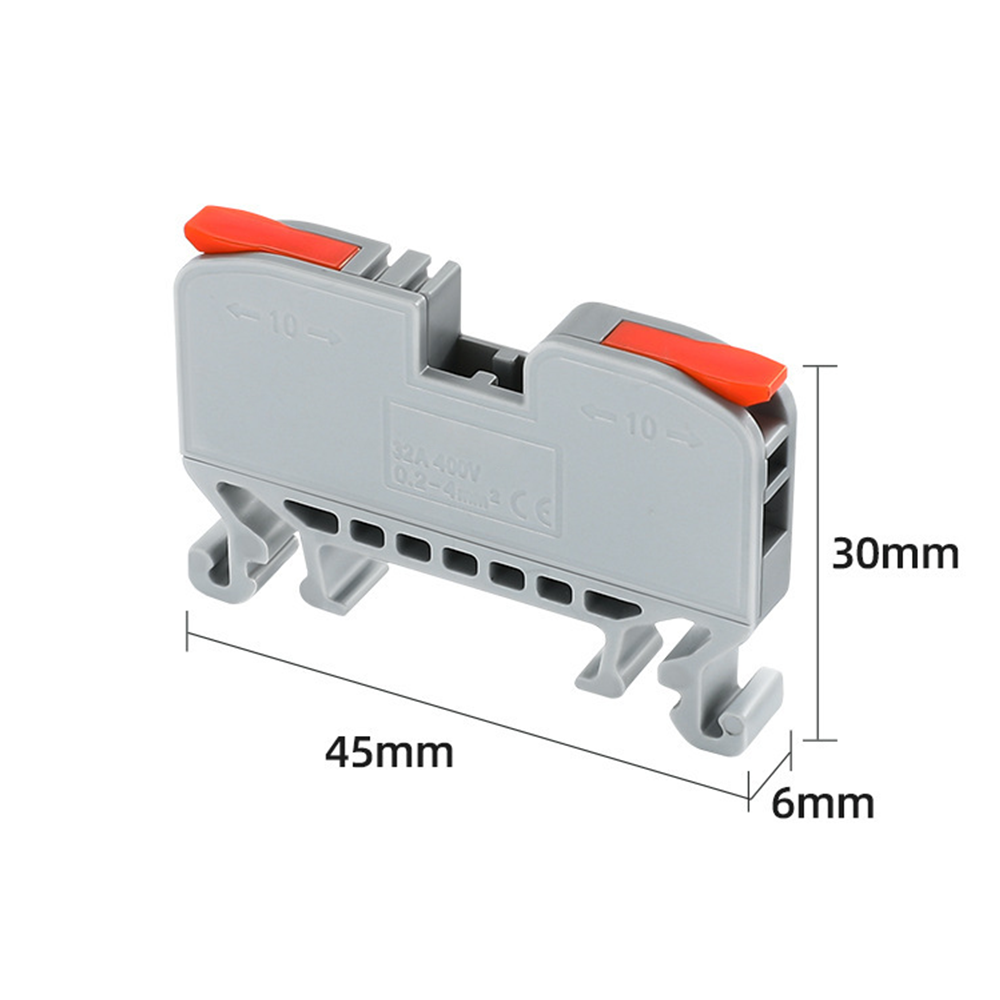

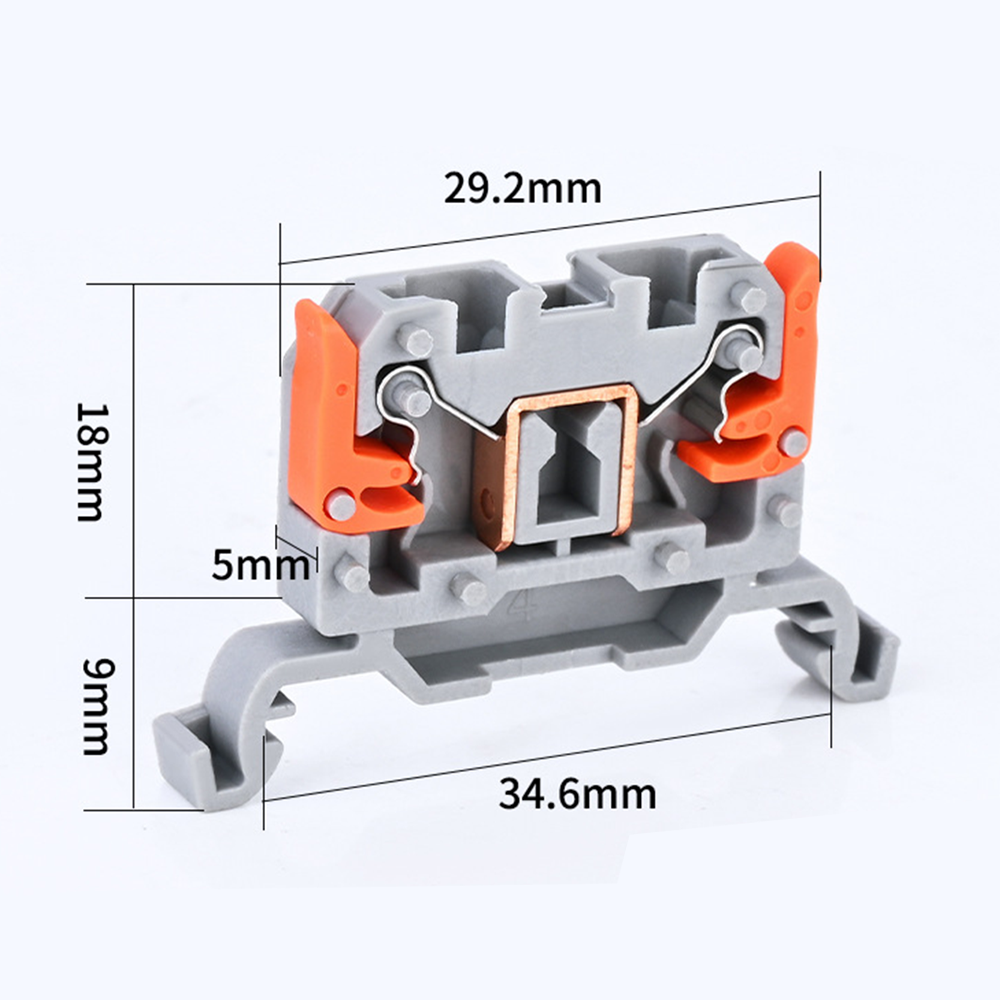

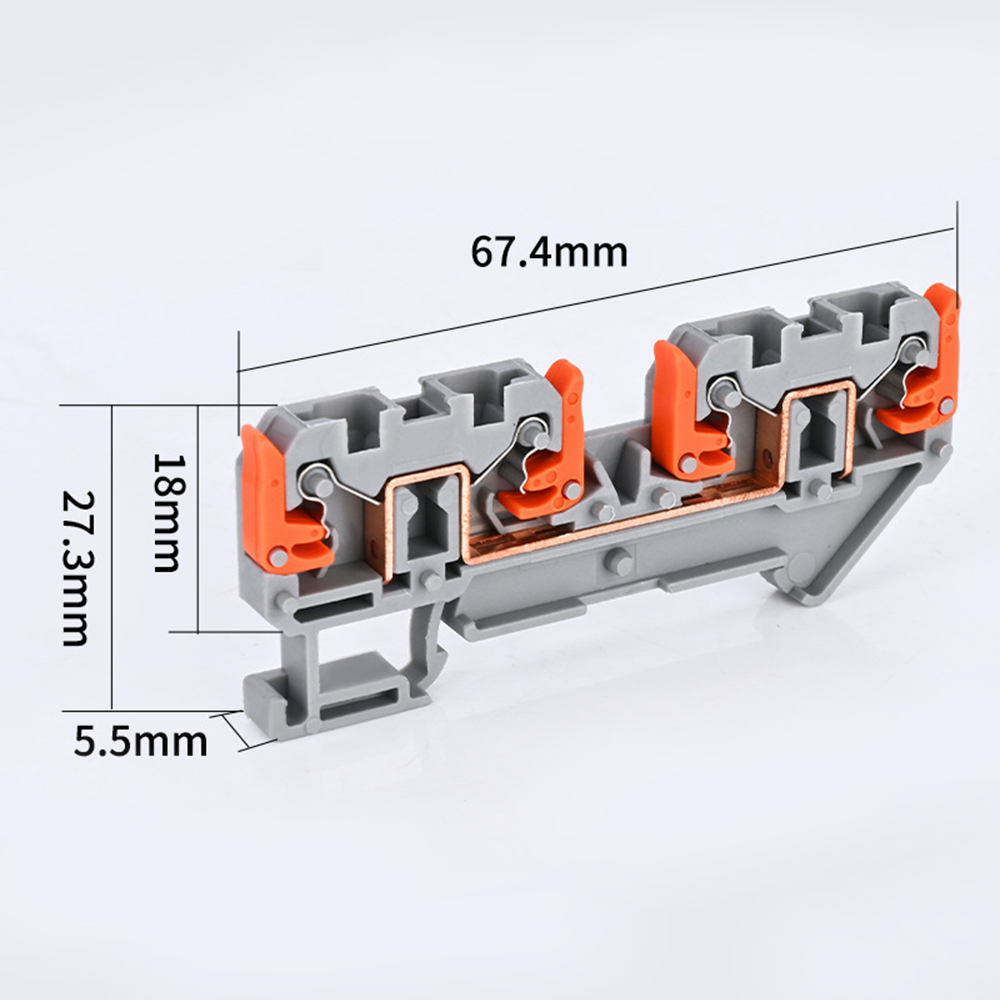

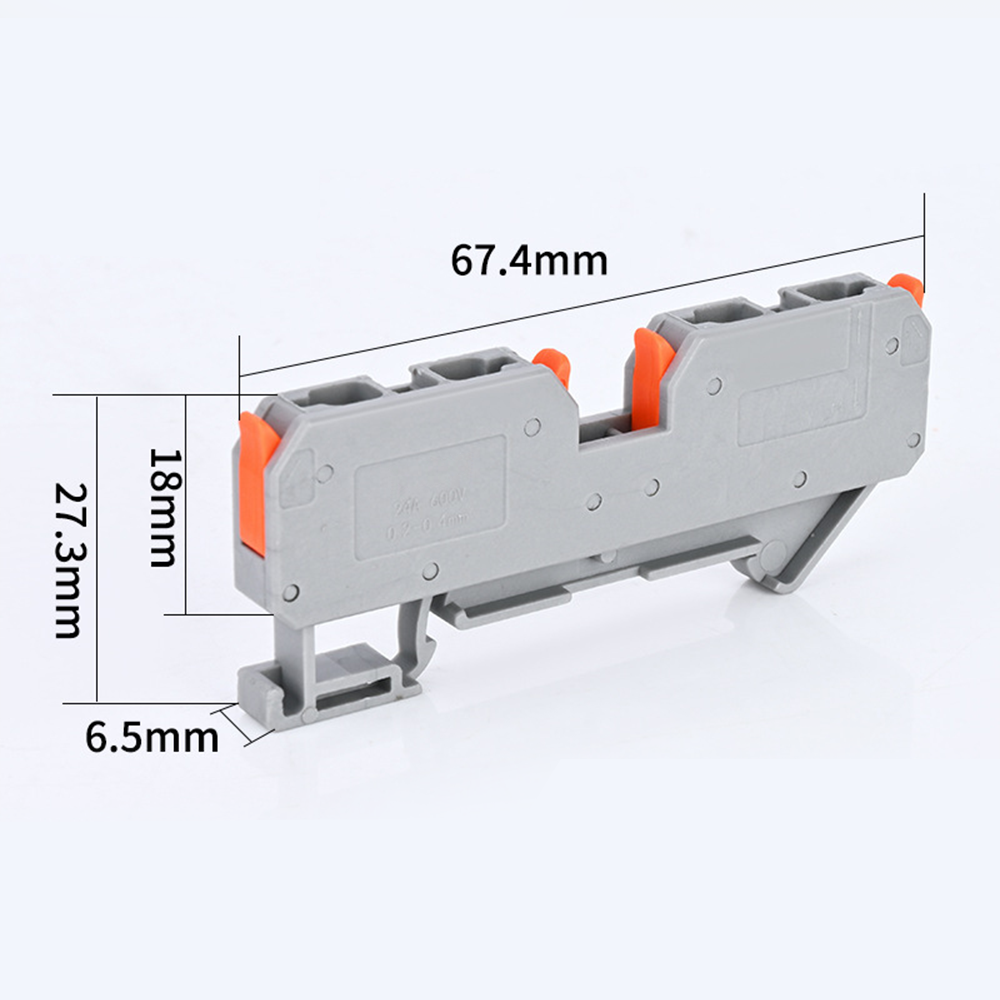

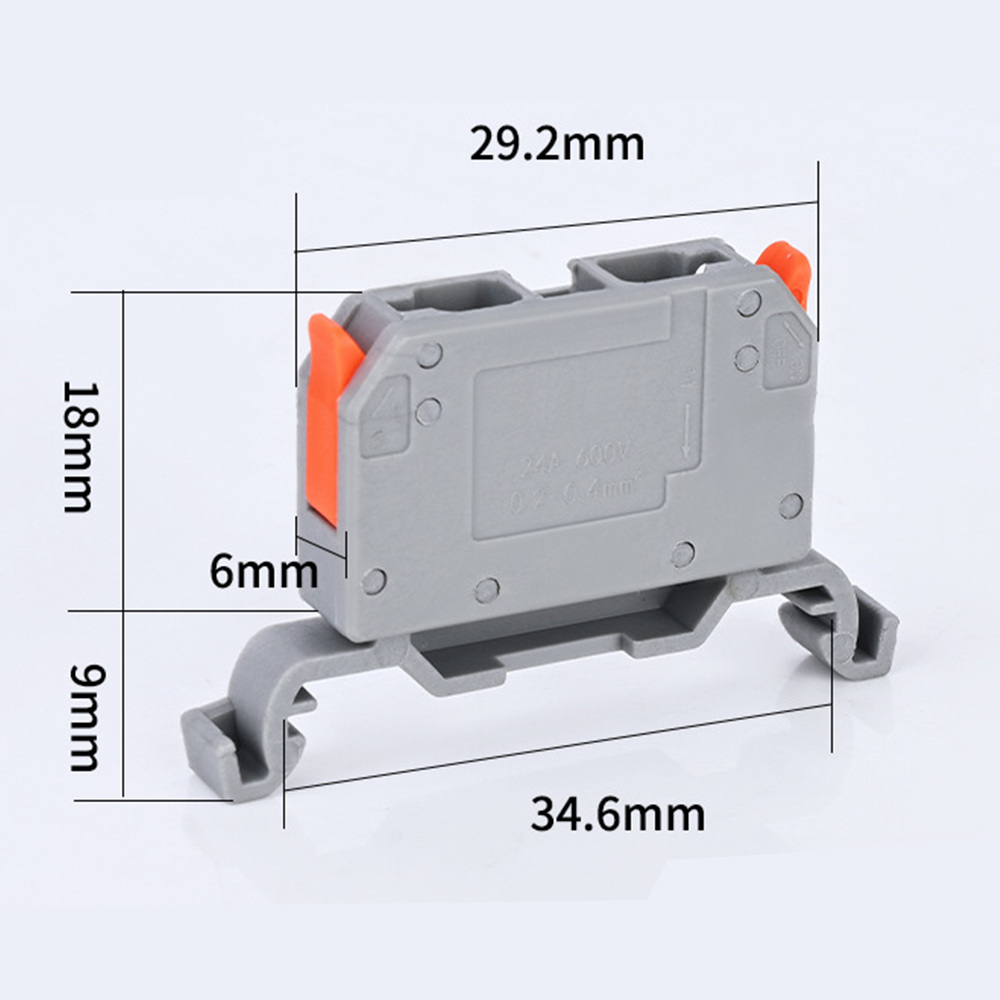

For the SLQK / SLP / SLU series DIN rail push-in terminal blocks, the design focuses on fast wiring and secure connection. The push-in mechanism allows quick, tool-free installation, ideal for control cabinets and high-density wiring applications.
Key advantages:

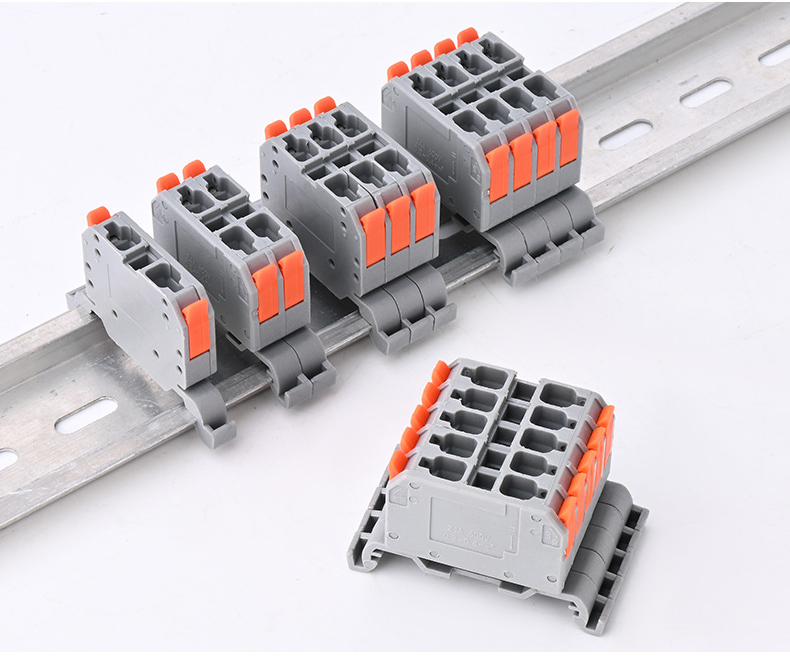

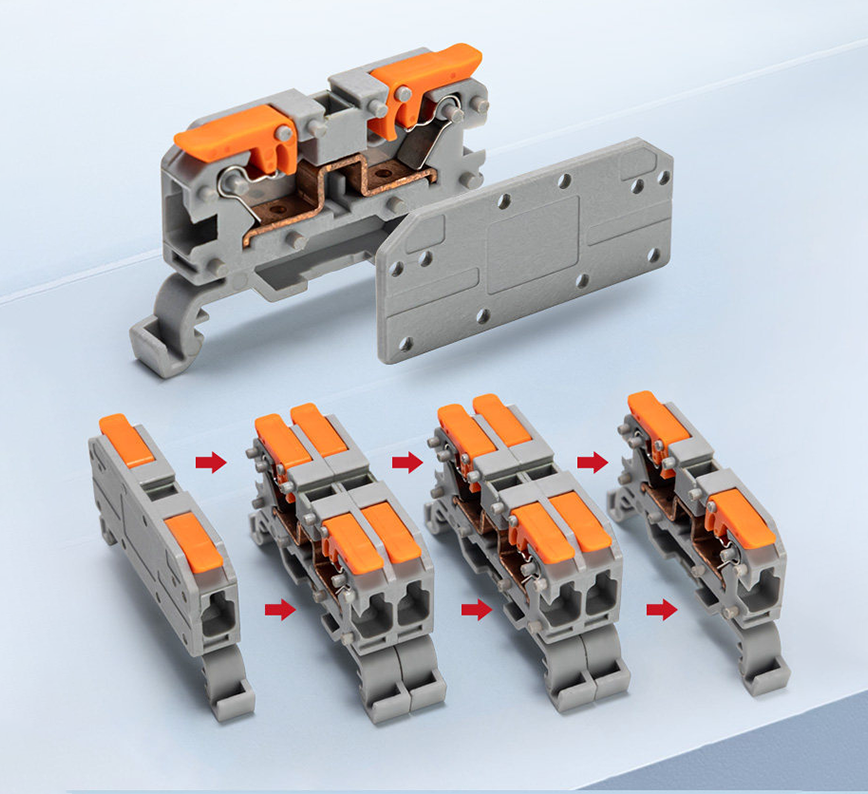

Disassemble and assemble freely and flexibly.
The detachable and modular design allows for greater freedom and flexibility in use, enabling users to customize the configuration to their needs.

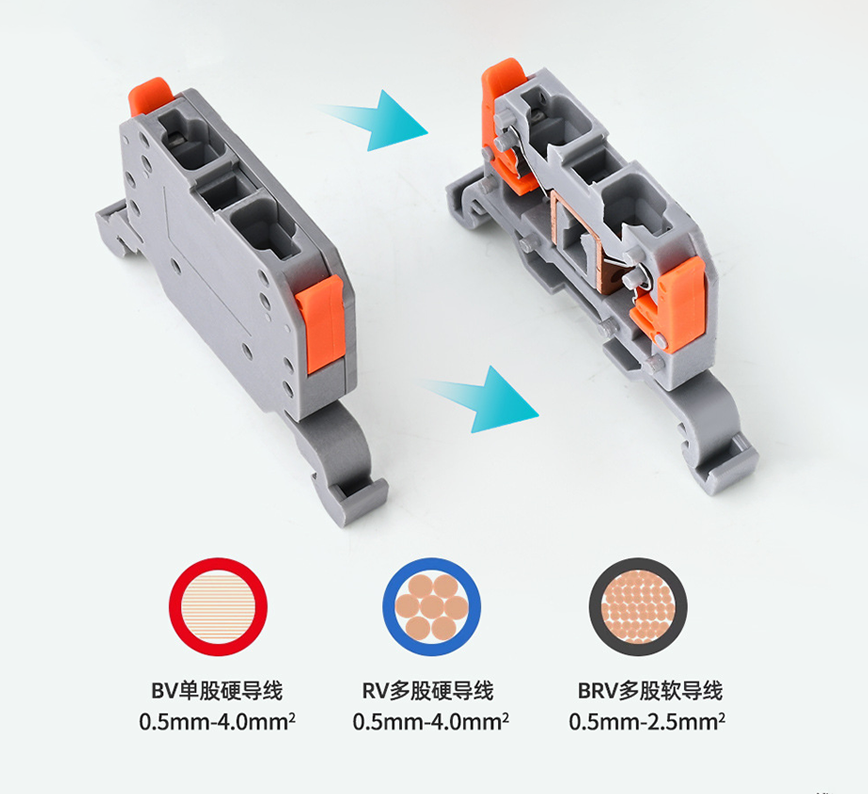

BV single-core single-strand wire
BVR Single-core Multi-strand Wire
One Input, Multiple Outputs: Enables centralized power or signal distribution
Quick Wiring: No screws required, simply press to complete wiring

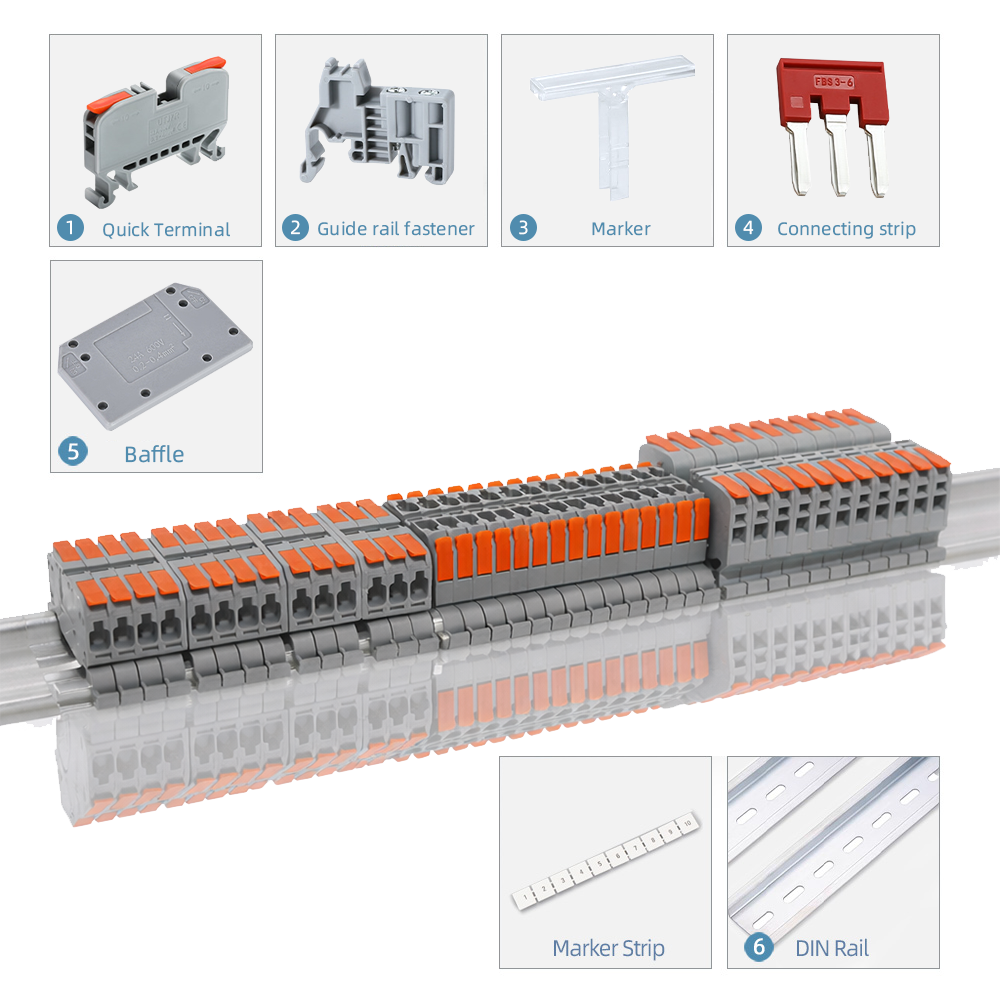

Modular Design: Supports expansion and combination use
Easy Maintenance: Clear labeling for more efficient maintenance
Safe and Reliable: Compact structure and stable contact

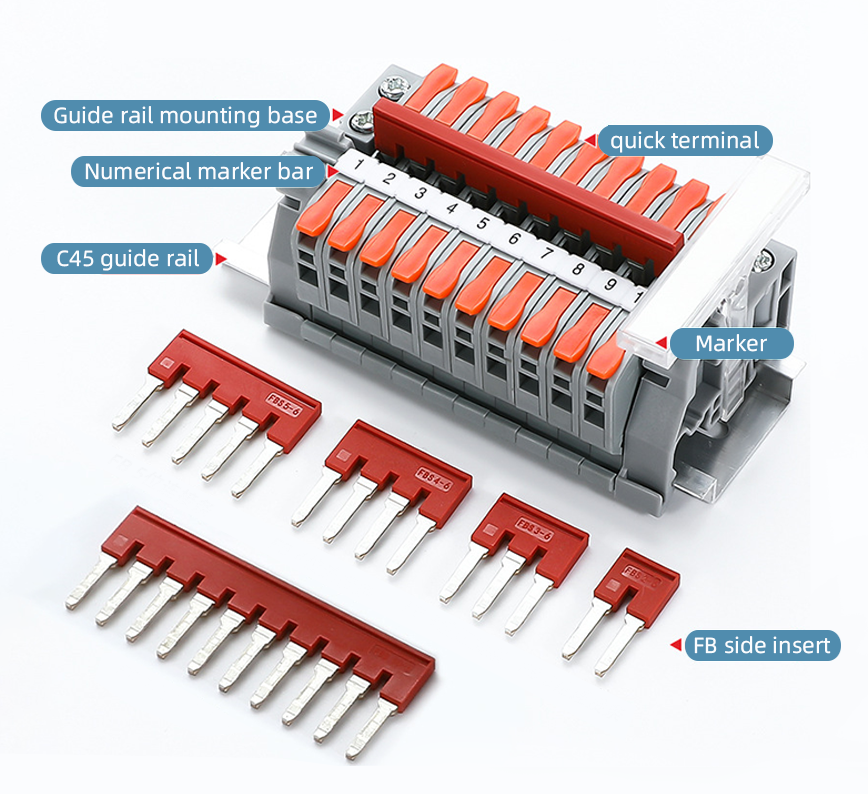

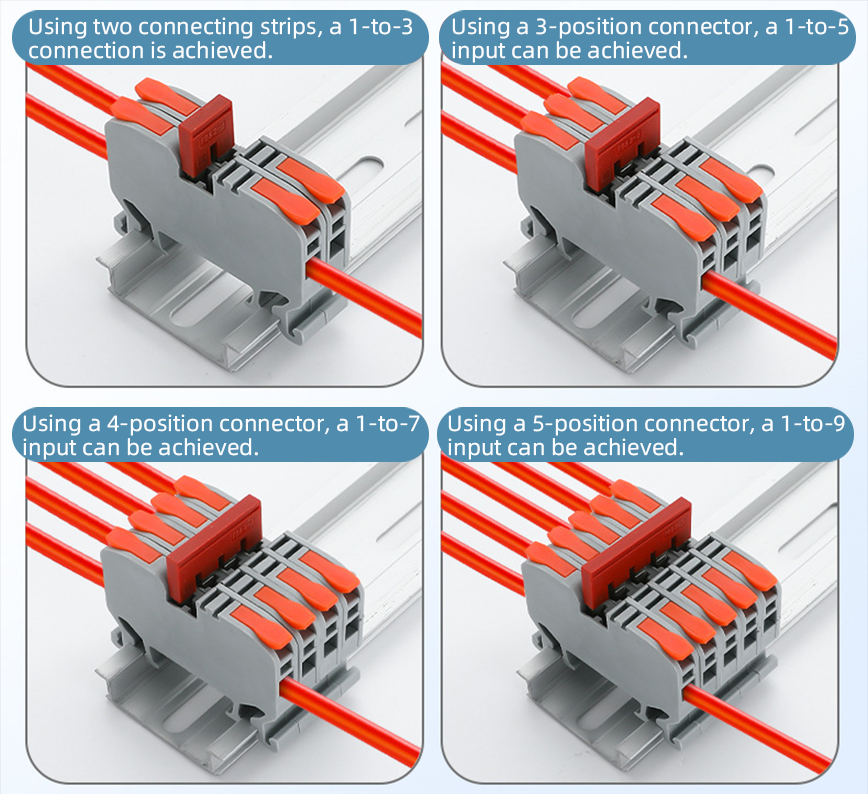

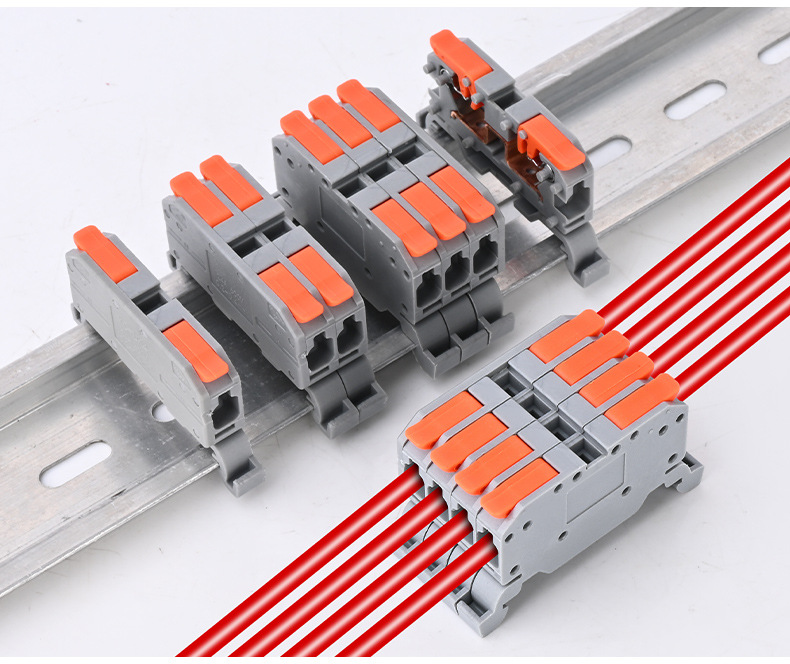

This rail-mounted terminal block supports flexible expansion through connection strips, achieving a quick line distribution function of “one in, multiple out”. According to the actual power consumption requirements, connection strips of different numbers of positions can be selected for combination.
The product adopts a plug-and-pull bridge design, which is easy to install without complex tools. Just insert the connection strip into the corresponding terminal position to complete the electrical connection, significantly improving the construction efficiency.
Want to see more terminal wiring videos?
Then follow me!
This type of terminal block is commonly known as a spring terminal block, lever-type quick-connect terminal block, or rail terminal block. Its key selling points are screwless operation, quick wiring, and reusable assembly and disassembly, making it suitable for wiring scenarios in distribution cabinets, control cabinets, lighting, and equipment.
Common models can be used with solid wires and multi-strand wires with cold-pressed terminals, and some products also support direct connection to multi-strand wires; however, whether direct connection is possible or whether crimping is required depends on the product specification.
The SLQK/SLP/SLU series DIN rail screwless quick-connect terminal block has a wire cross-section of 0.2-4mm².
