l With Push-in connection technology, you can connect conductors easily – both directly and without tools, insert forces reduced by 50%. it is suitable for various applications. Insert rigid conductors or conductors with ferrules from 0.25mm² into the conductor shaft. The contact spring opens automatically and provides the required pressure force against the current bar.
| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | PTV2.5 |
| Connection Method | Push-In Connection |
| Rated Current | 24A |
| Rated Voltage | 800V |
| Color | grey |
| Mounting | Din rail |
| Material of Shell | Nylon PA66 |
| Metal Material | Brass |
| Dimensions | 51.2×35.6×5.2 |

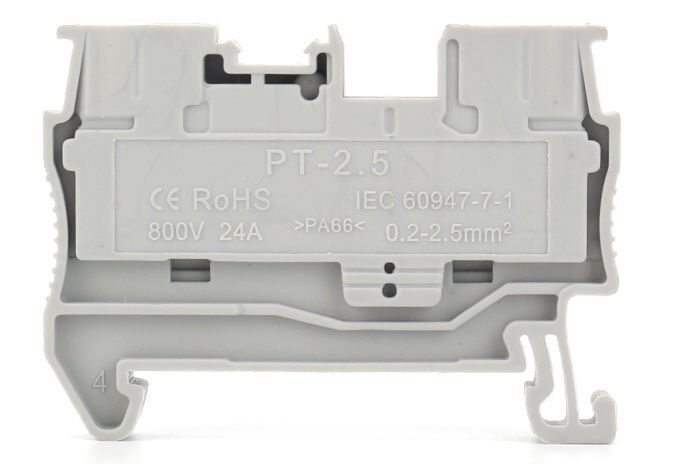

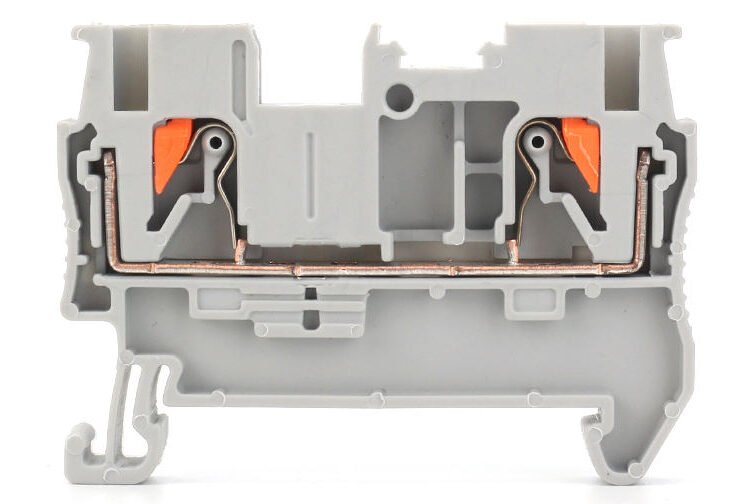

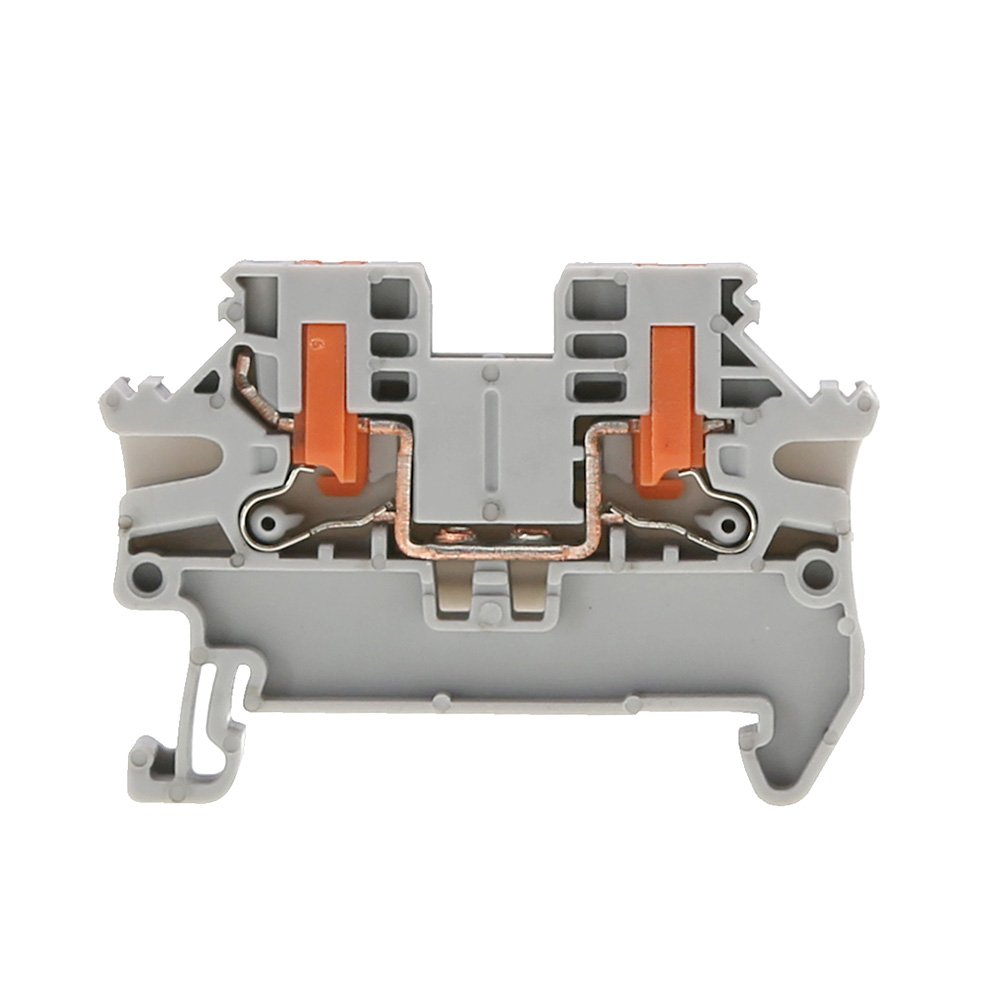

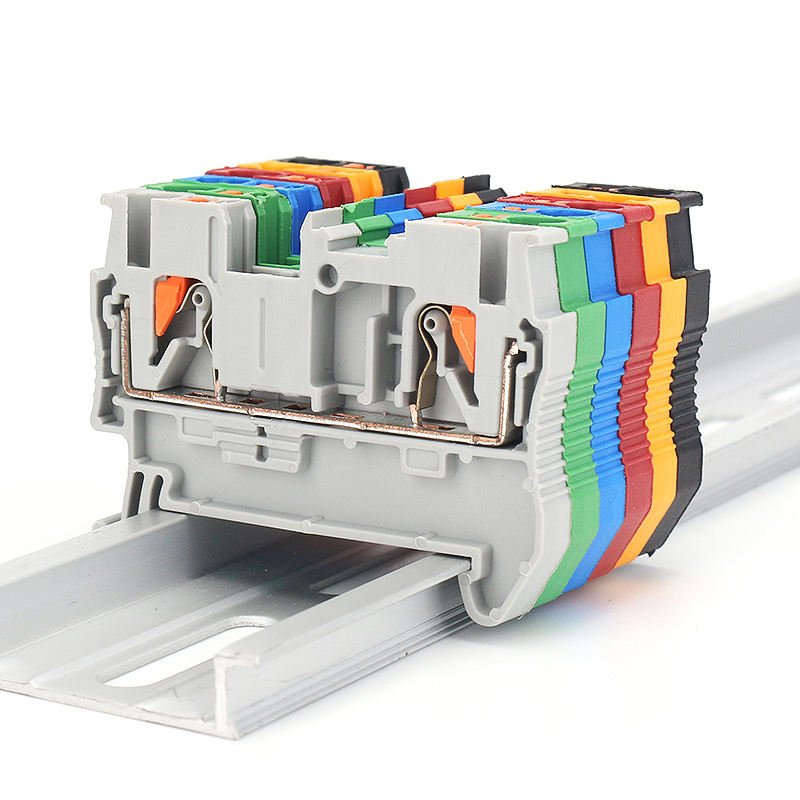

PT2.5
Model: PT2.5
Rated cross-section: 2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 49mm×35.3mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

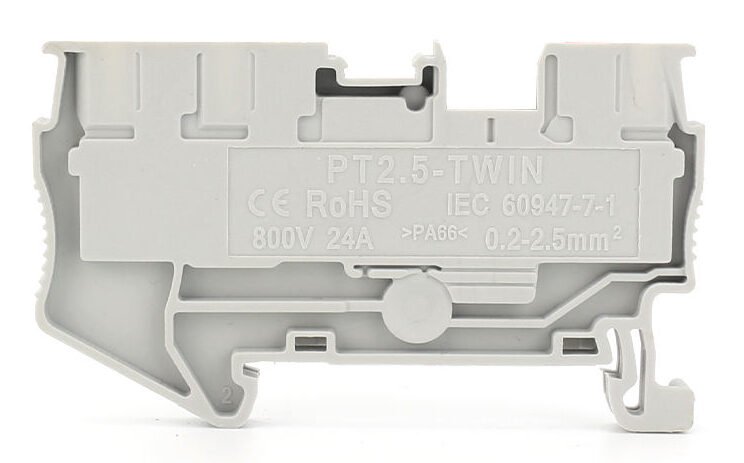

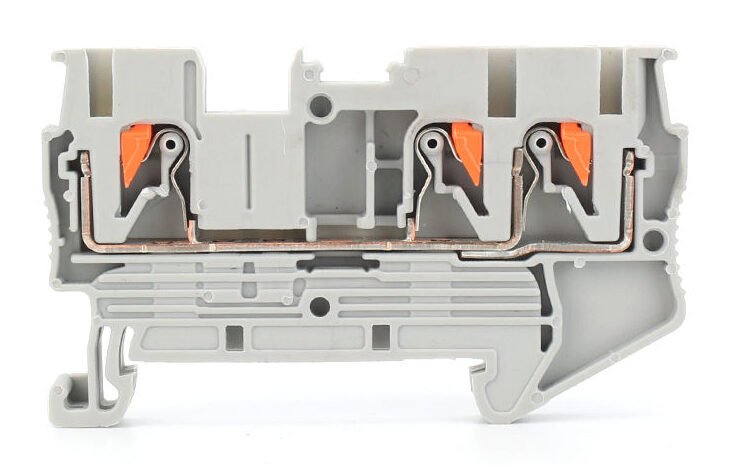

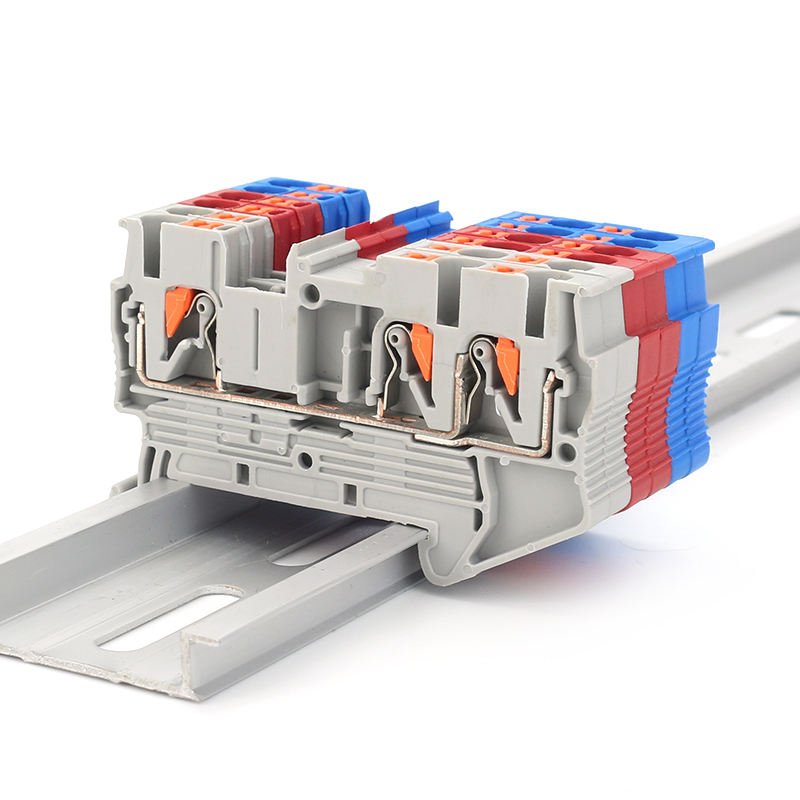

PT2.5-TWIN
Model: PT2.5-TWIN
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 60.7mm×35.5mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

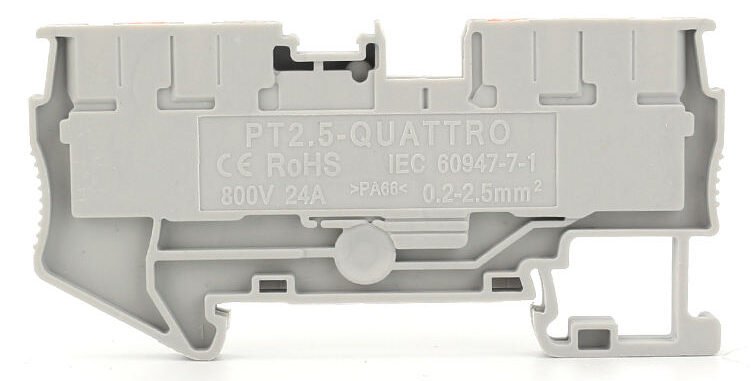

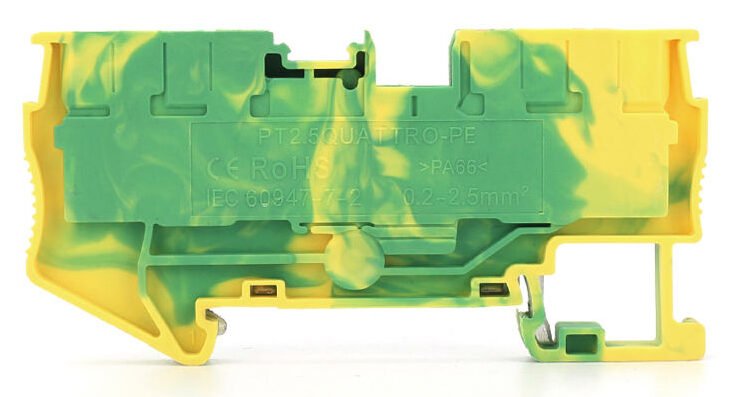

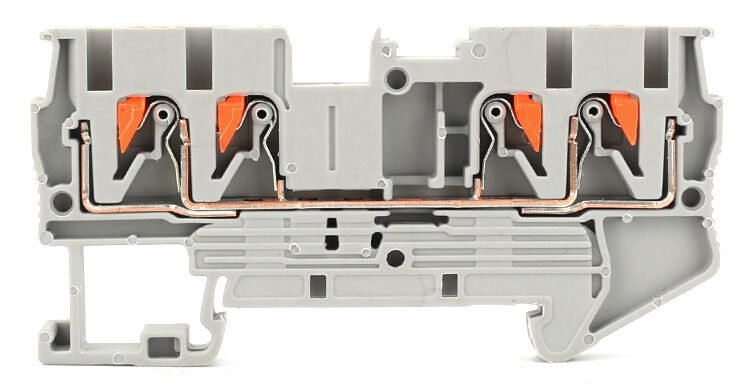

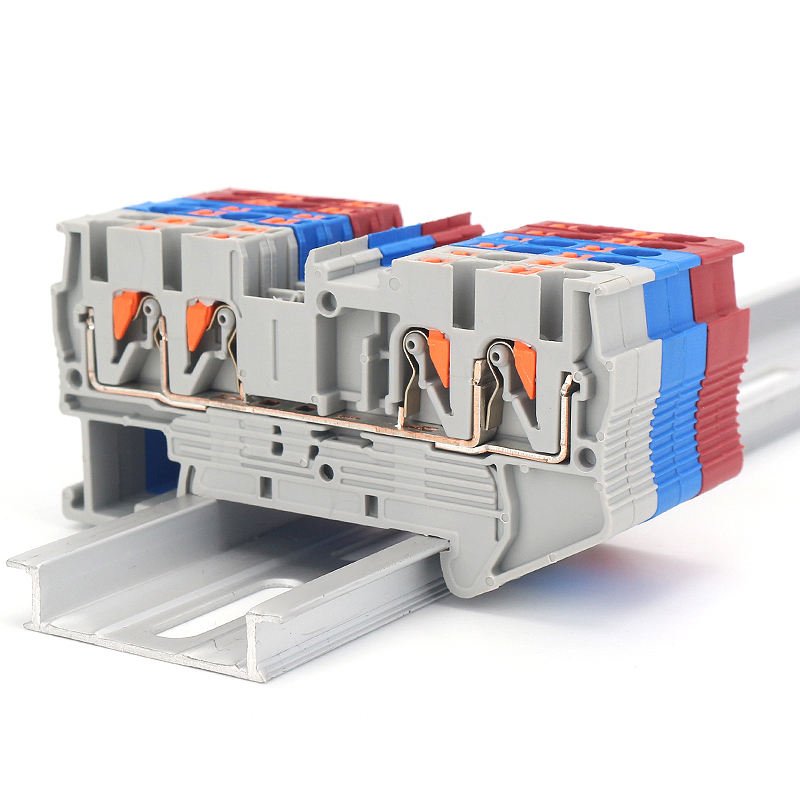

PT2.5-QUATTRO
Model: PT2.5-QUATTRO
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 72.7mm×35.5mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

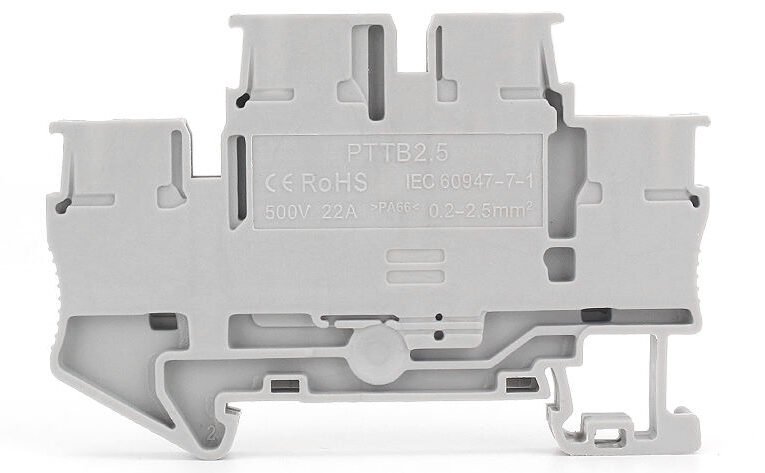

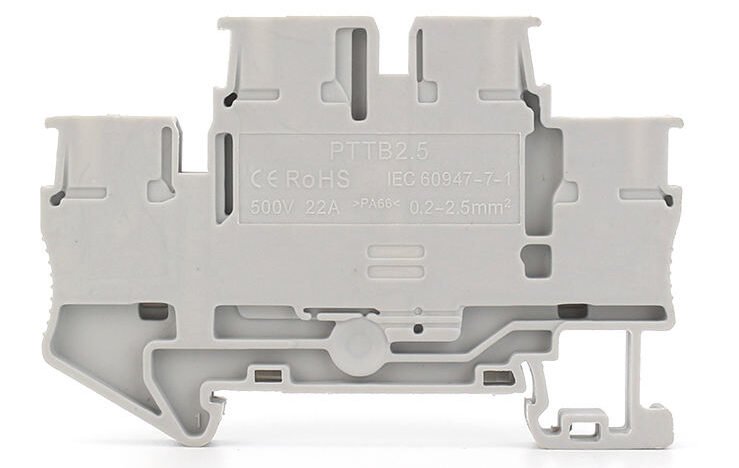

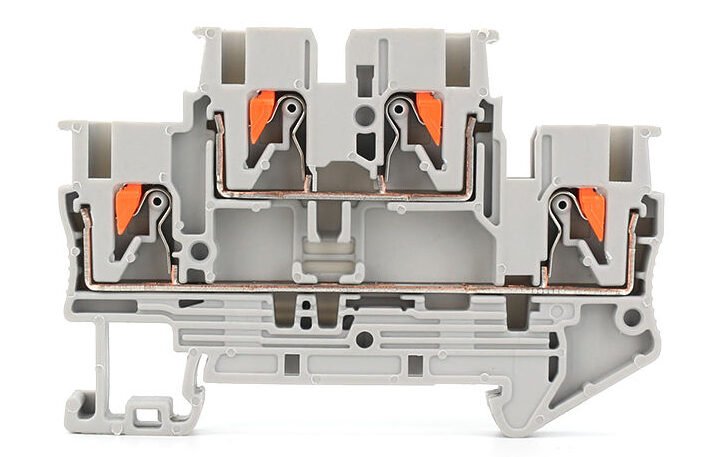

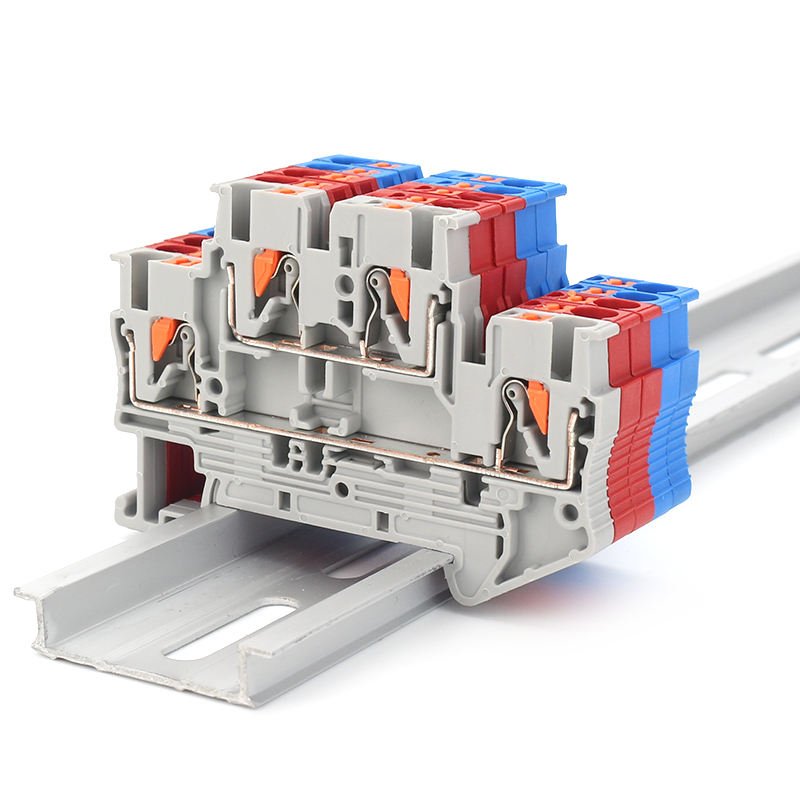

PTTB 2.5
Model: PTTB 2.5
Rated cross-section: 0.2-2.5mm²
Rated Current: 22A
Voltage: 500V
Length/Width/thickness: 68.3mm×45.8mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

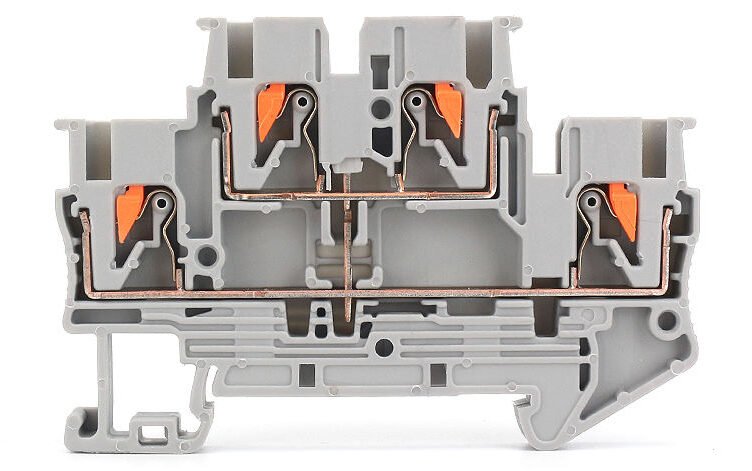

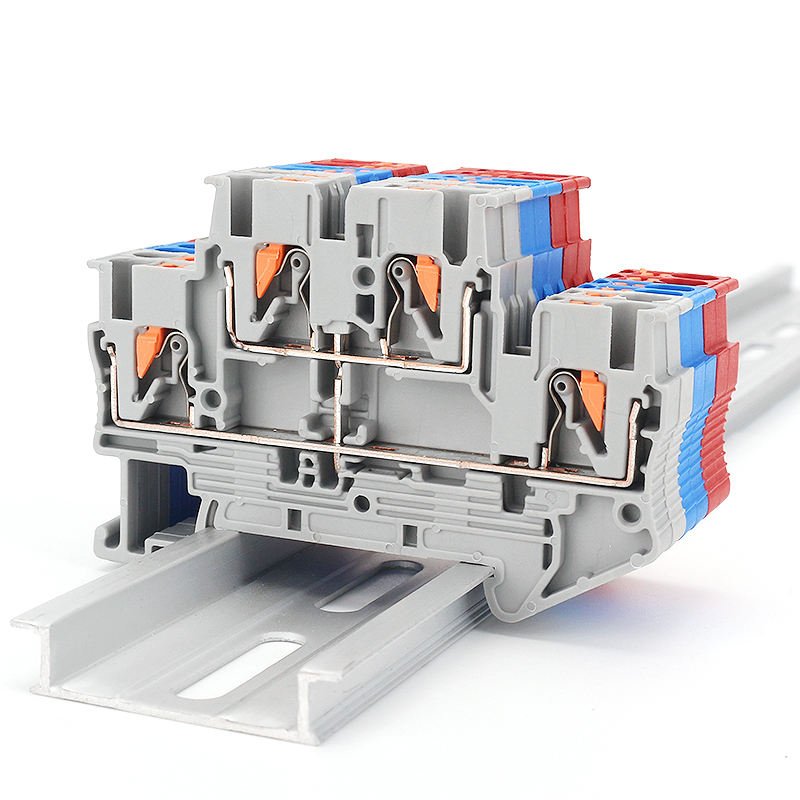

PTTB 2.5-PV
Model: PTTB 2.5-PV
Rated cross-section: 0.2-2.5mm²
Rated Current: 22A
Voltage: 500V
Length/Width/thickness: 68.3mm×45.8mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

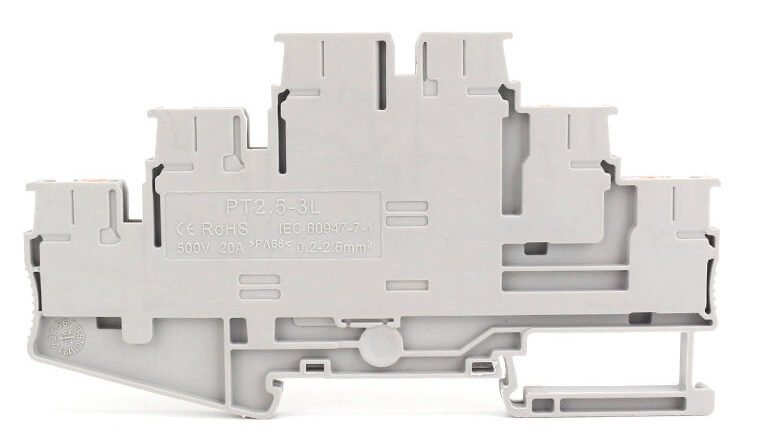

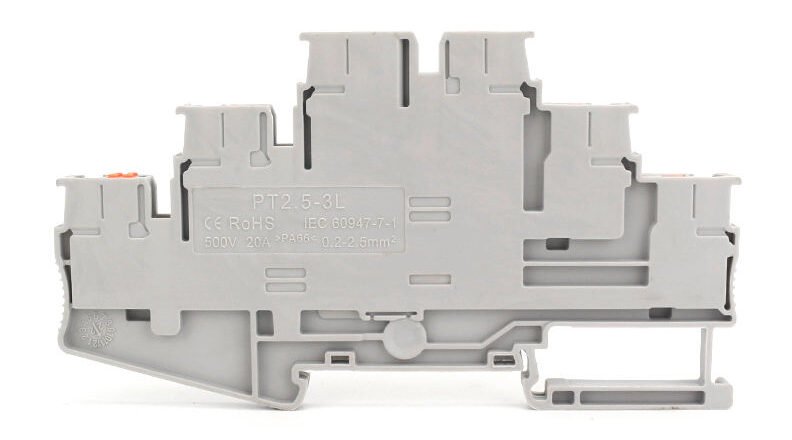

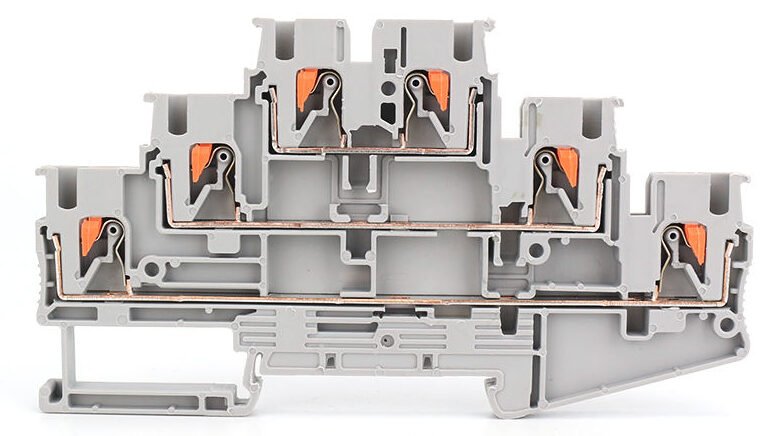

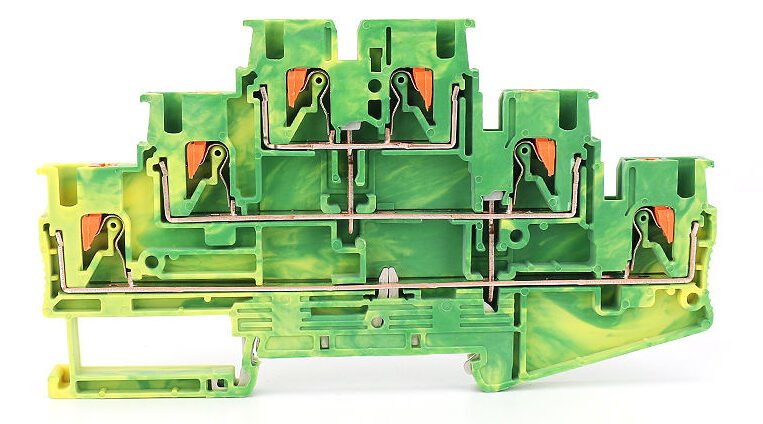

PT 2.5-3L
Model: PT 2.5-3L
Rated cross-section: 0.2-2.5mm²
Rated Current: 20A
Voltage: 500V
Length/Width/thickness: 103.5mm×57mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

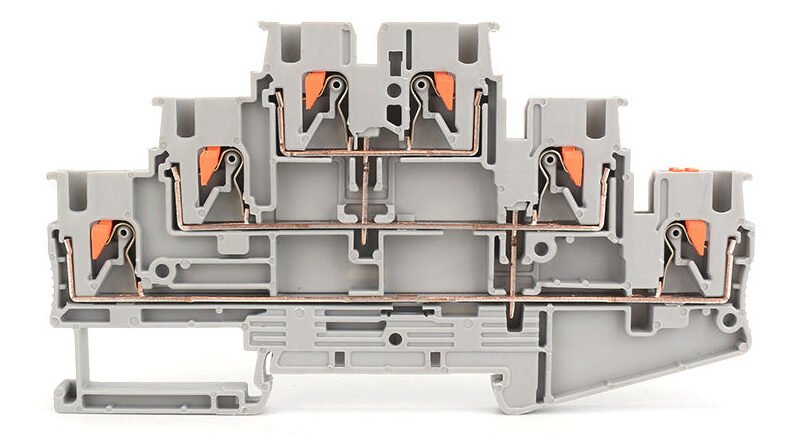

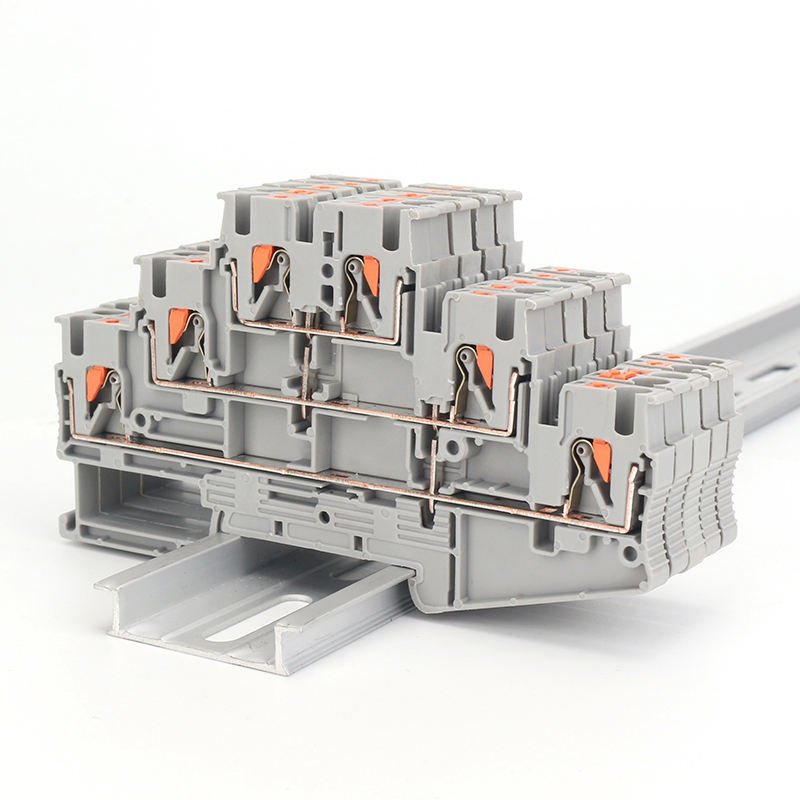

PT 2.5-3PV
Model: PT 2.5-3PV
Rated cross-section: 0.2-2.5mm²
Rated Current: 20A
Voltage: 500V
Length/Width/thickness: 103.5mm×57mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

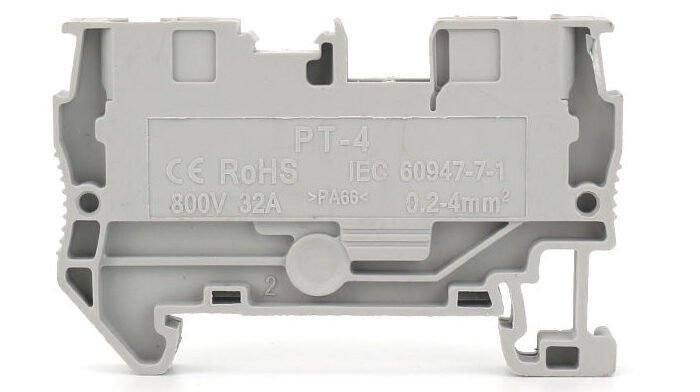

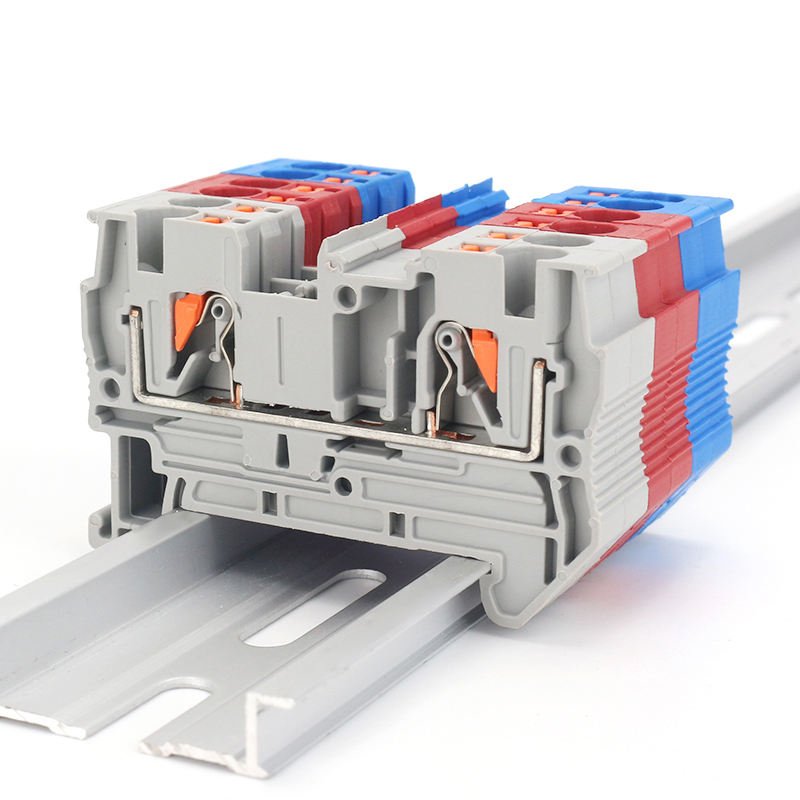

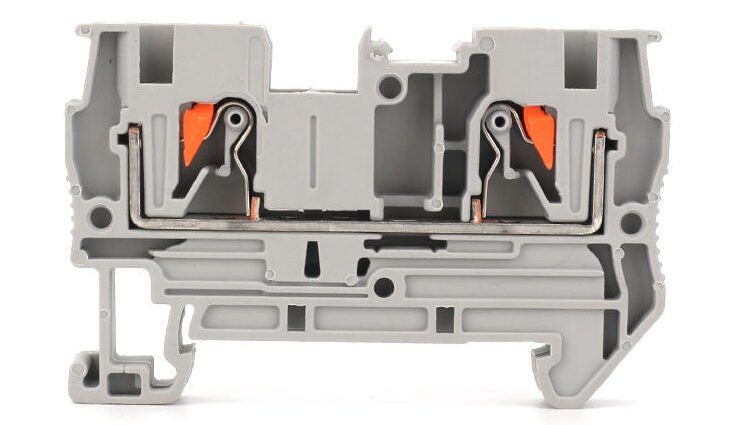

PT4
Model: PT4
Rated cross-section: 0.2-4mm²
Rated Current: 32A
Voltage: 800V
Length/Width/thickness: 66.9mm×35.5mm×6.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

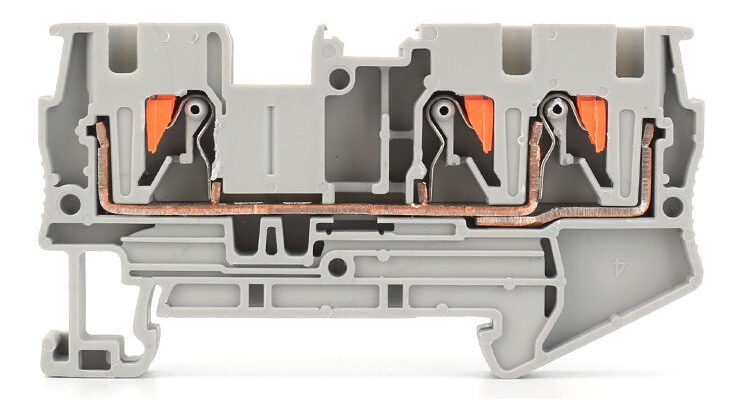

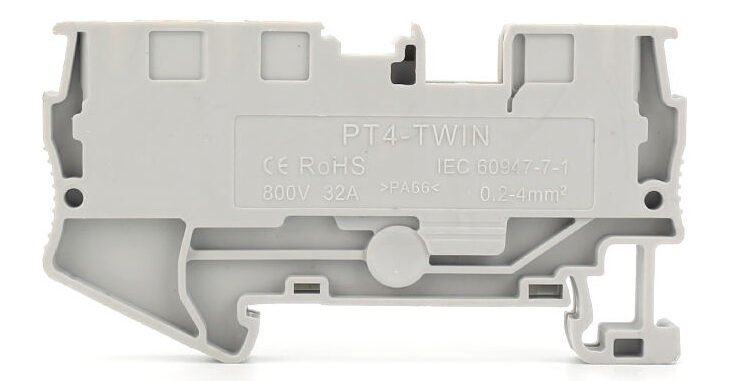

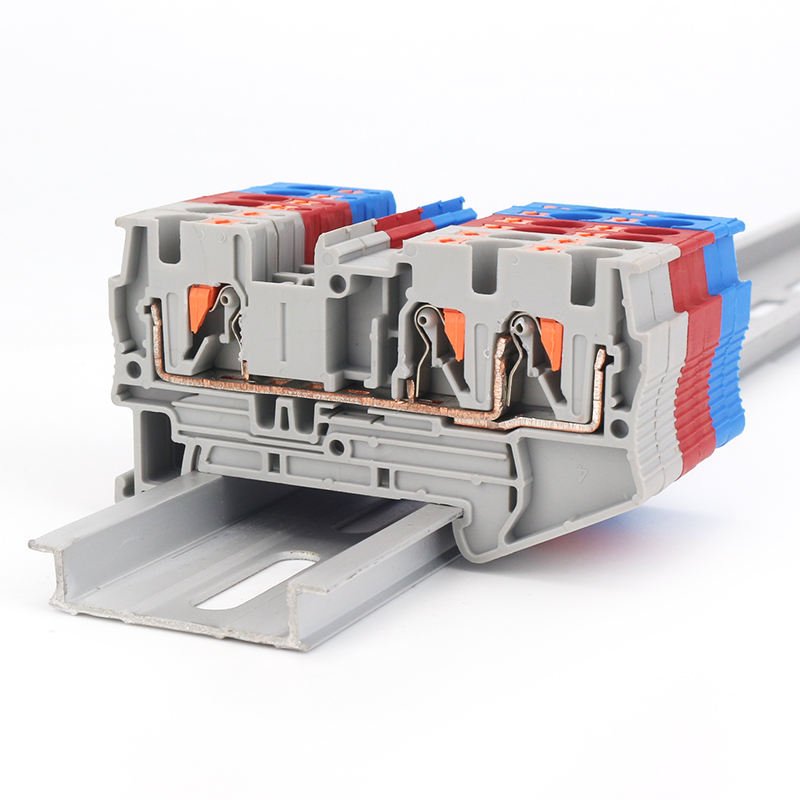

PT4-TWIN
Model: PT4-TWIN
Rated cross-section: 0.5-4.0mm²
Rated Current: 32A
Voltage: 800V
Length/Width/thickness: 66.9mm×35.5mm×6.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

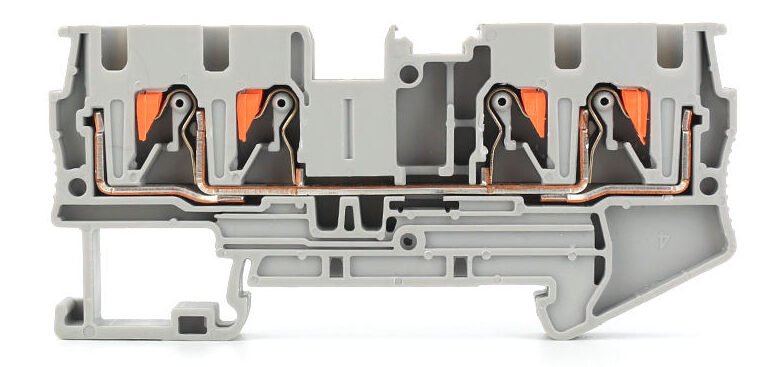

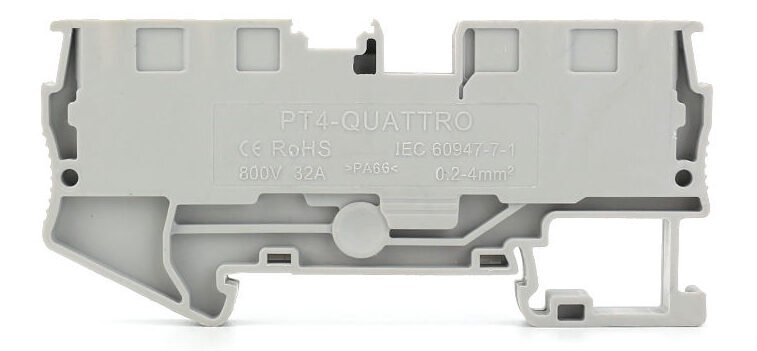

PT4-QUATTRO
Model: PT4-QUATTRO
Rated cross-section: 0.5-4.0mm²
Rated Current: 32A
Voltage: 800V
Length/Width/thickness: 77.3mm×35.5mm×6.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

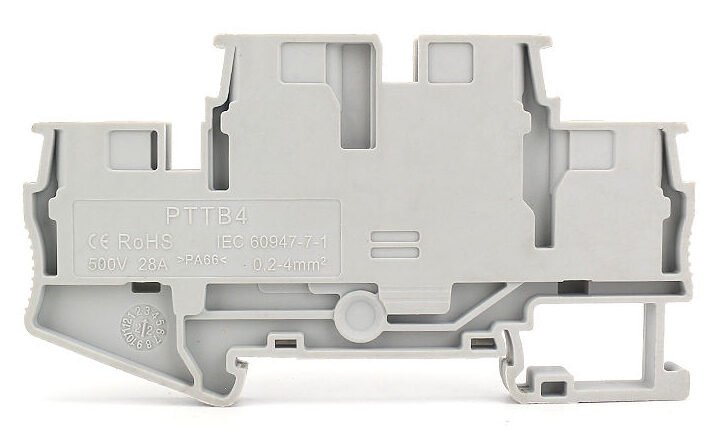

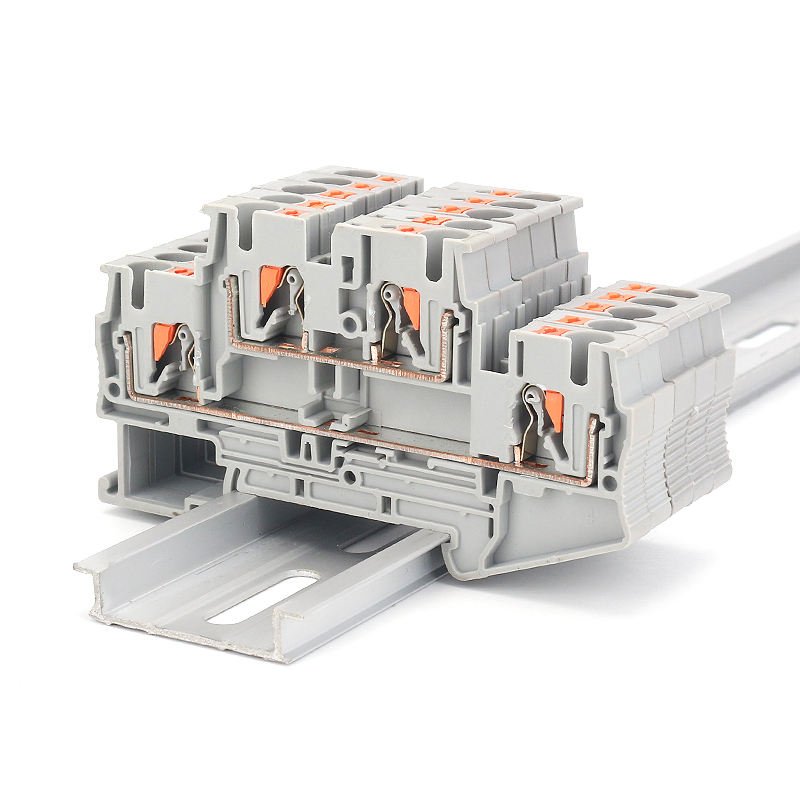

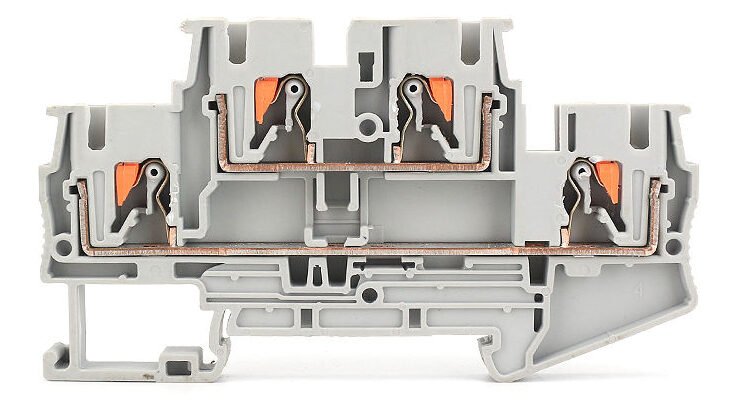

PTTB4
Model: PTTB4
Rated cross-section: 0.5-4.0mm²
Rated Current: 28A
Voltage: 500V
Length/Width/thickness: 84.1mm×46.1mm×6.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

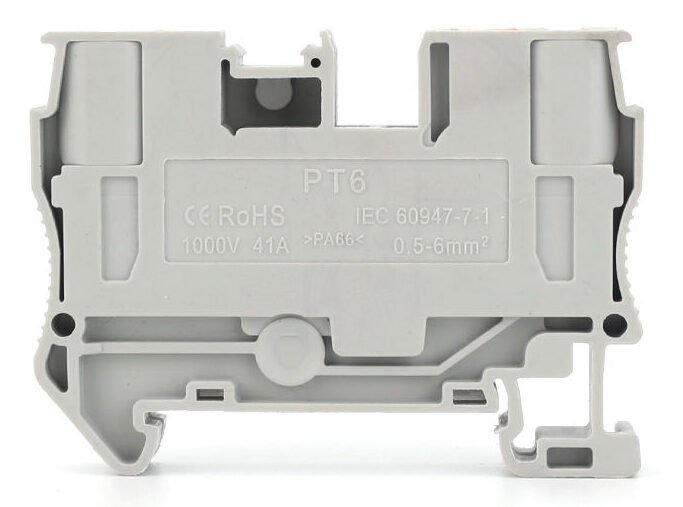

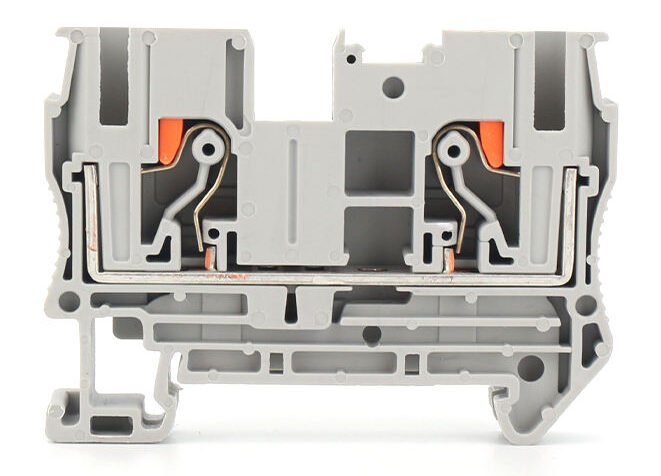

PT6
Model: PT6
Rated cross-section: 0.5-6.0mm²
Rated Current: 41A
Voltage: 1000V
Length/Width/thickness: 58mm×42.4mm×8.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

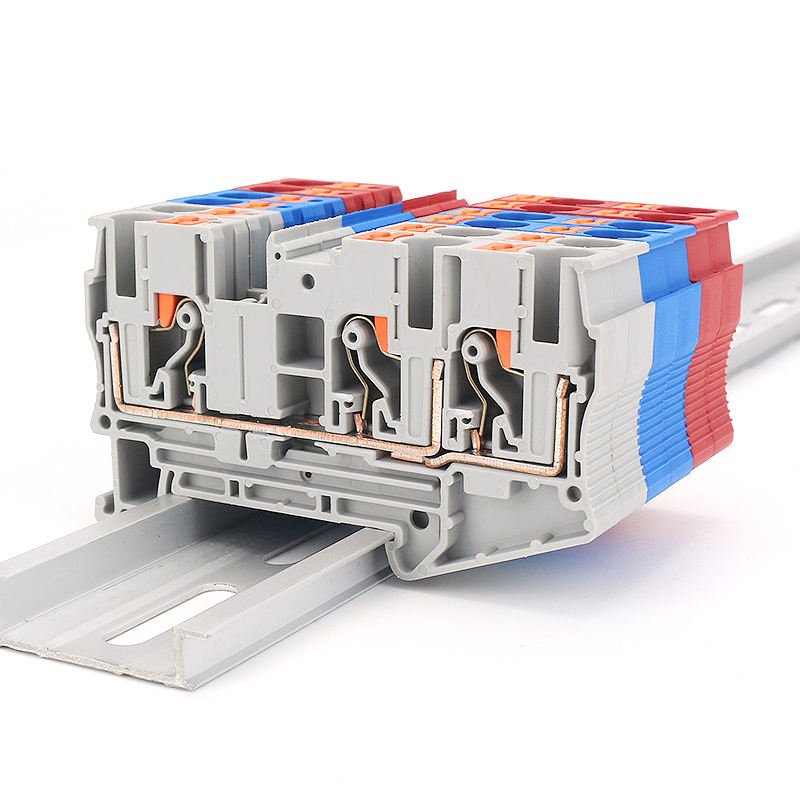

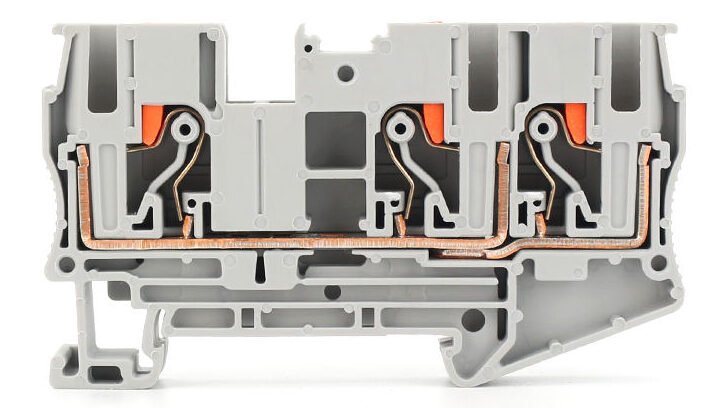

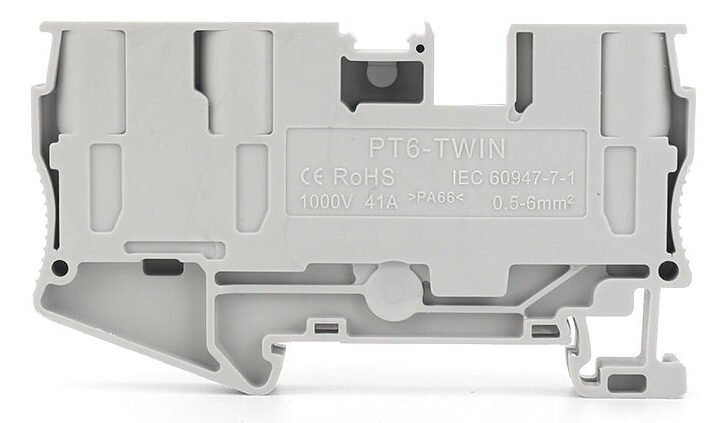

PT6-TWIN
Model: PT6-TWIN
Rated cross-section: 0.5-6.0mm²
Rated Current: 41A
Voltage: 1000V
Length/Width/thickness: 74.2mm×42.2mm×8.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

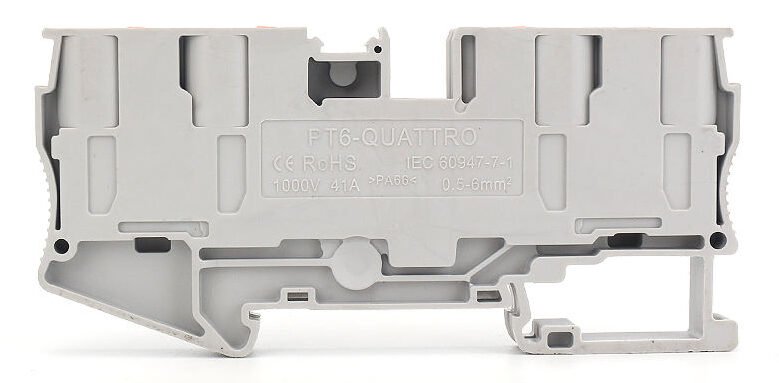

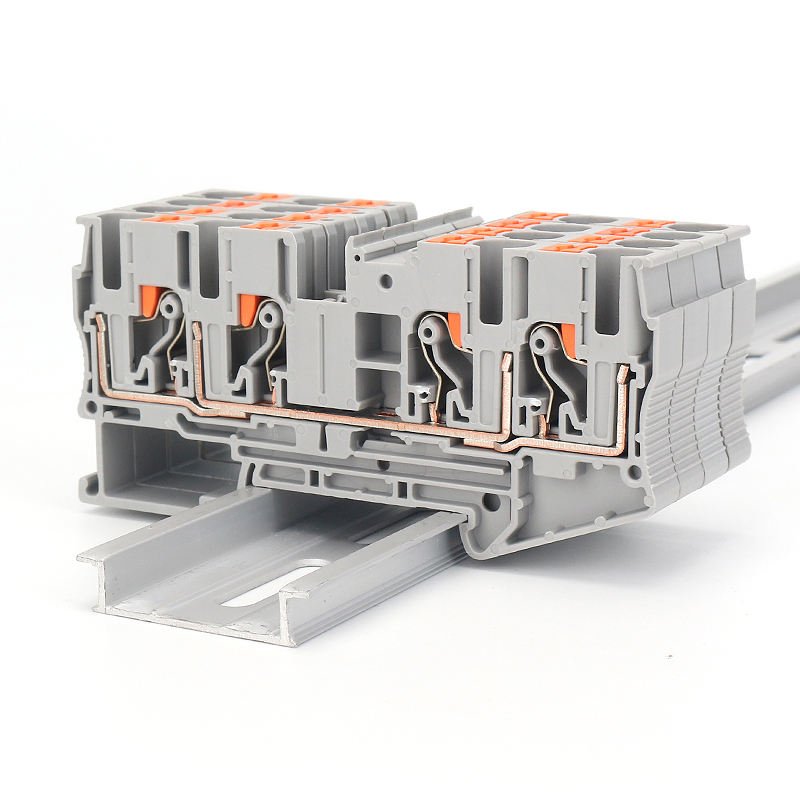

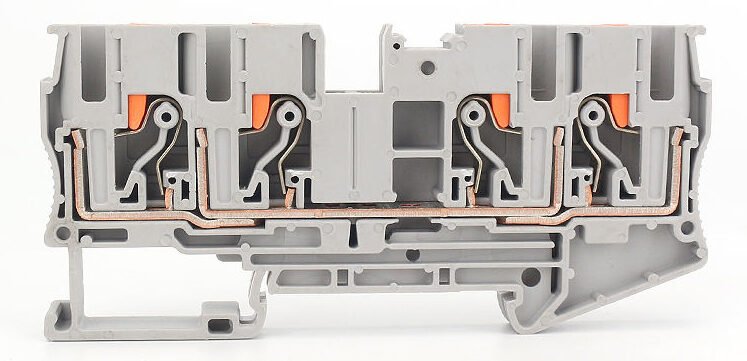

PT6-QUATTRO
Model: PT6-QUATTRO
Rated cross-section: 0.5-6.0mm²
Rated Current: 41A
Voltage: 1000V
Length/Width/thickness: 90.3mm×42.2mm×8.2mm
Stripping length: 10-12mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

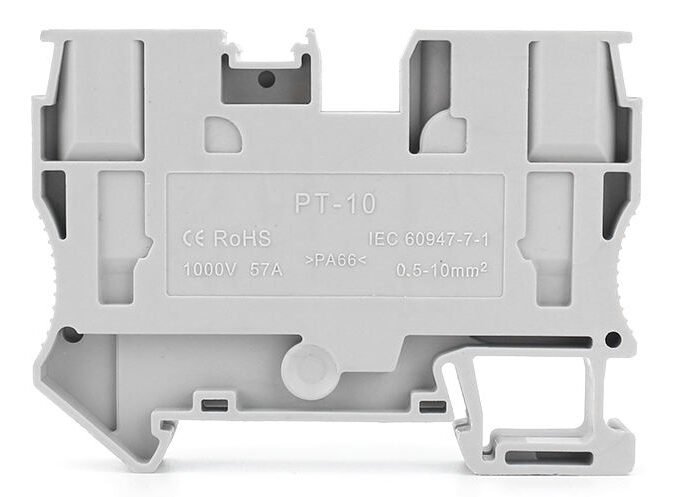

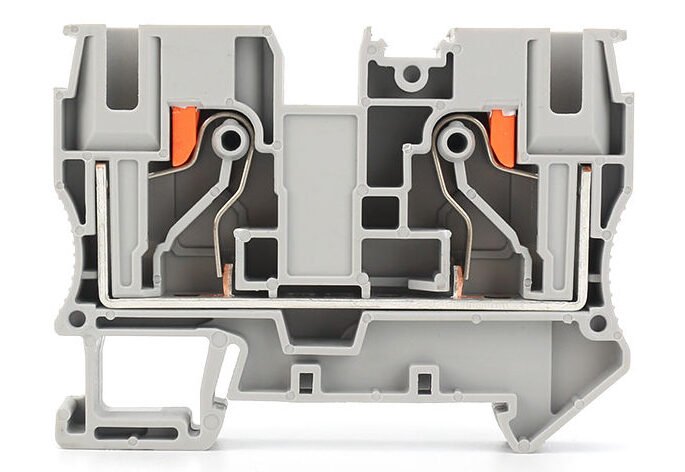

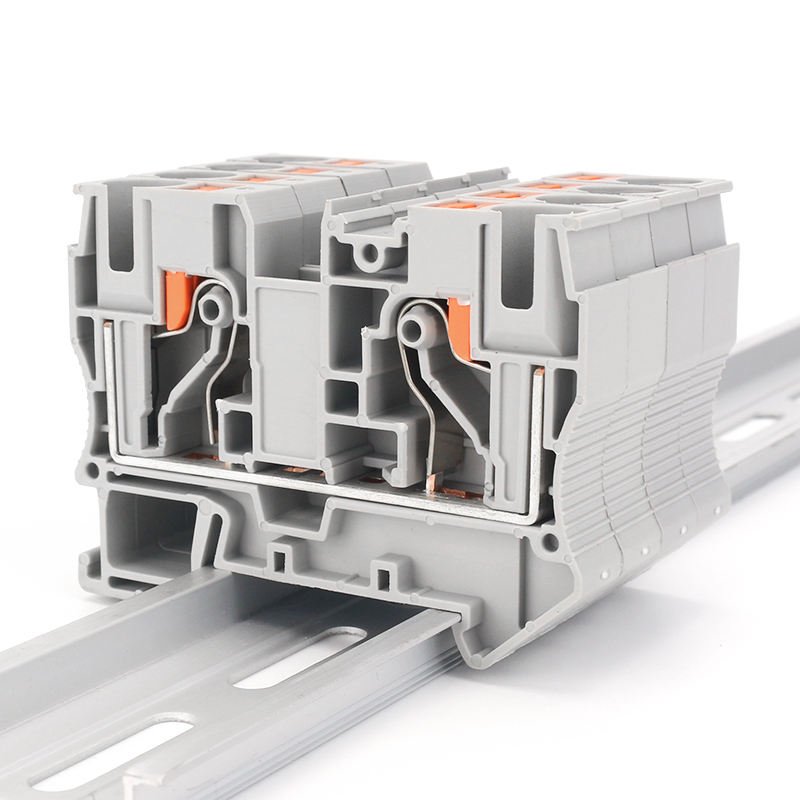

PT10
Model: PT10
Rated cross-section: 0.5-10mm²
Rated Current: 57A
Voltage: 1000V
Length/Width/thickness: 67.9mm×49.8mm×10.2mm
Stripping length: 18-20mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

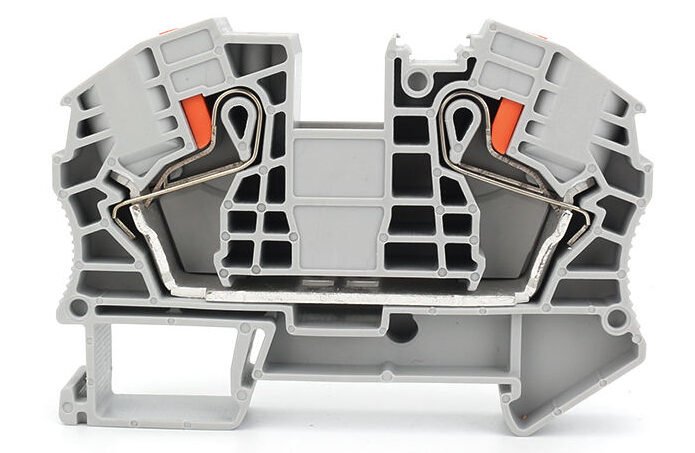

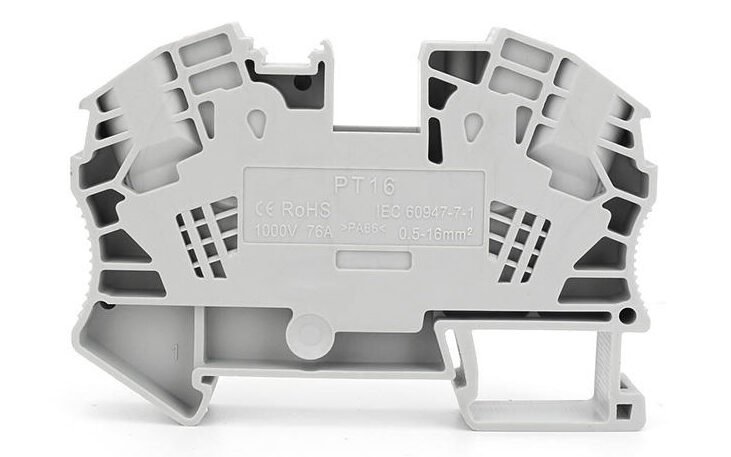

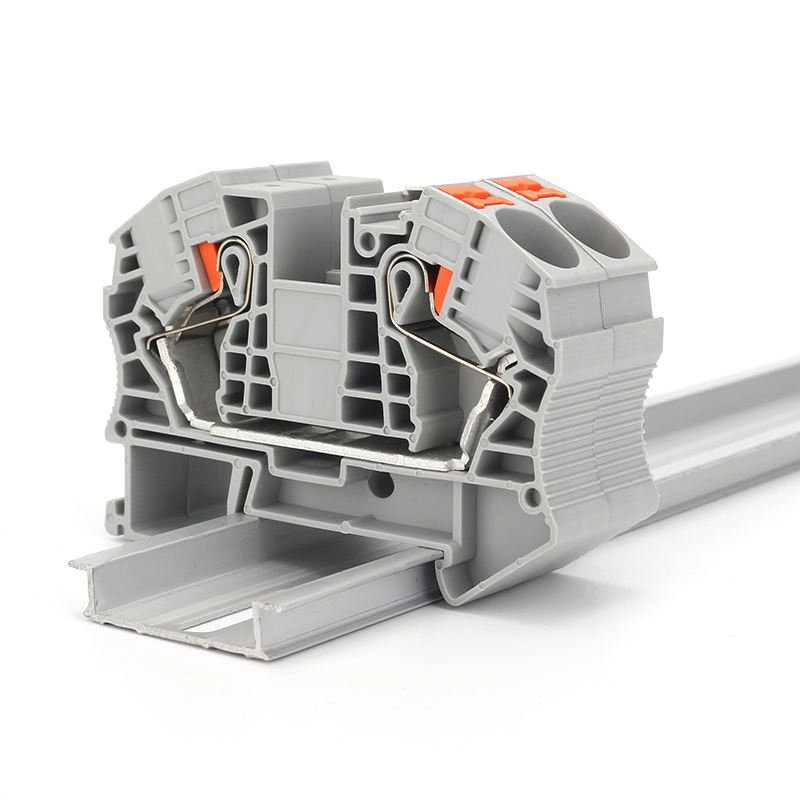

PT16
Model: PT16
Rated cross-section: 0.5-25mm²
Rated Current: 76A
Voltage: 1000V
Length/Width/thickness: 75.5mm×52.5mm×12.2mm
Stripping length: 18-20mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

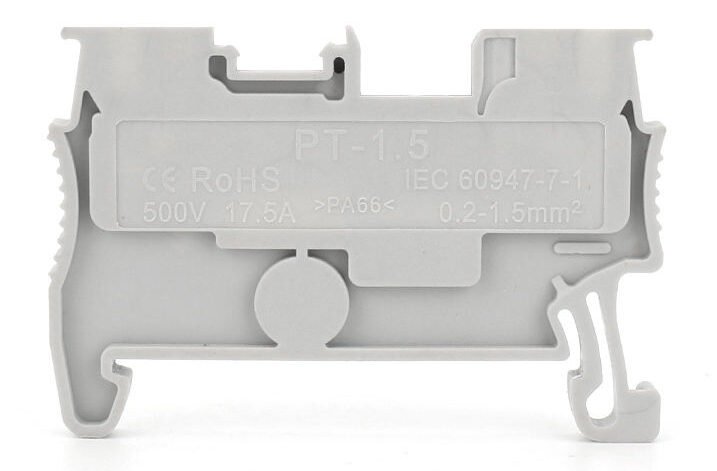

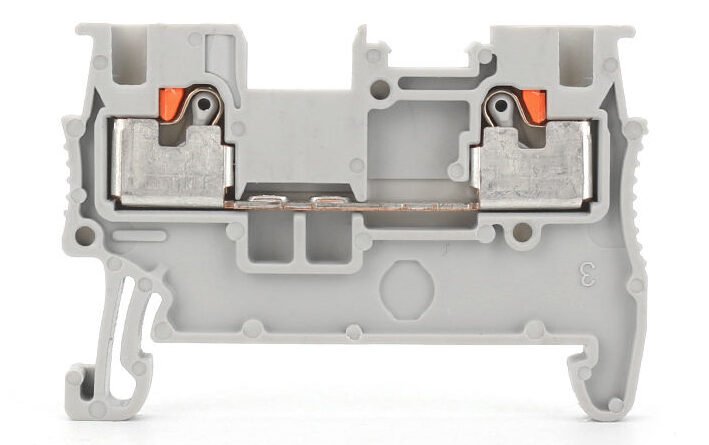

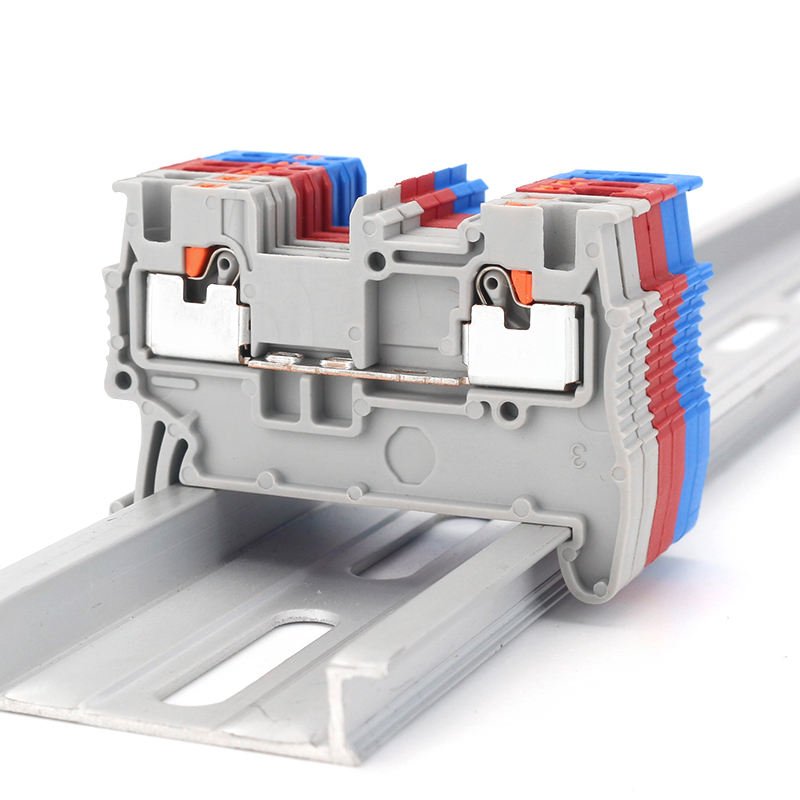

PT1.5
Model: PTTB1.5
Rated cross-section: 0.14-1.5mm²
Rated Current: 15A
Voltage: 600V
Length/Width/thickness: 45.4mm×30.9mm×3.5mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

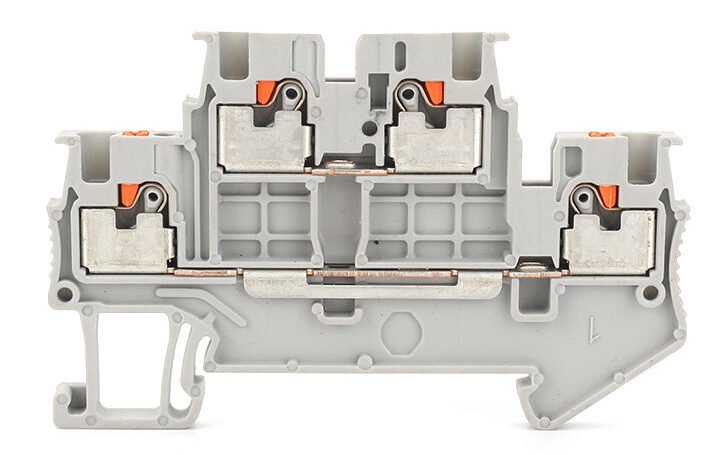

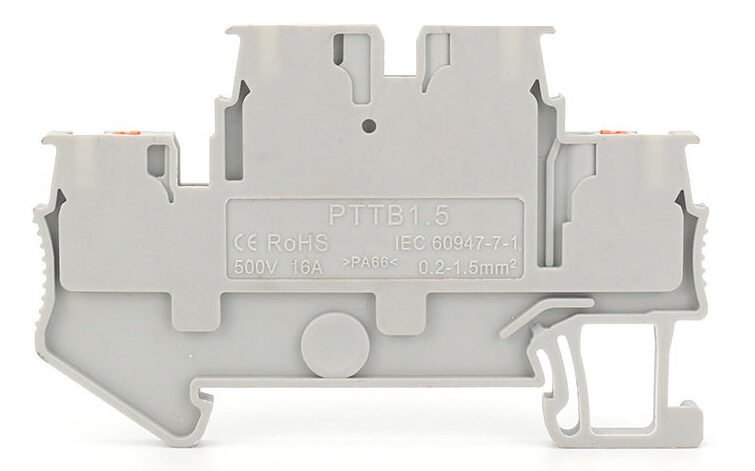

PTTB1.5
Model: PT1.5
Rated cross-section: 0.14-1.5mm²
Rated Current: 15A
Voltage: 600V
Length/Width/thickness: 65.5mm×41mm×3.5mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

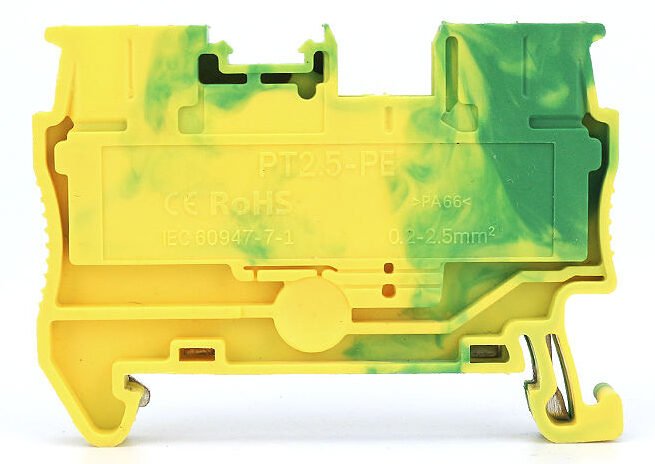

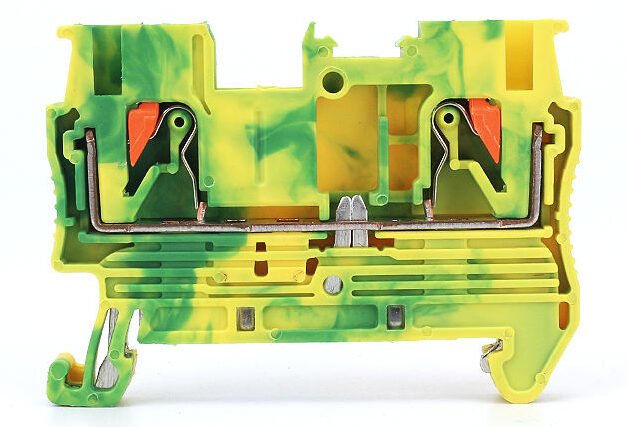

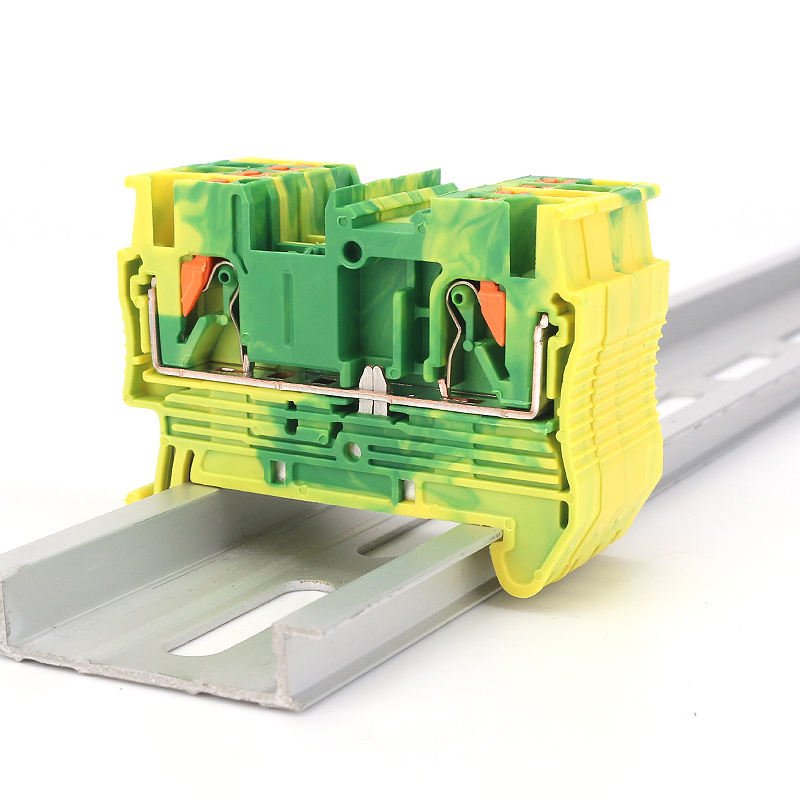

PT2.5-PE
Model: PT2.5-PE
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 48.8mm×35.4mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

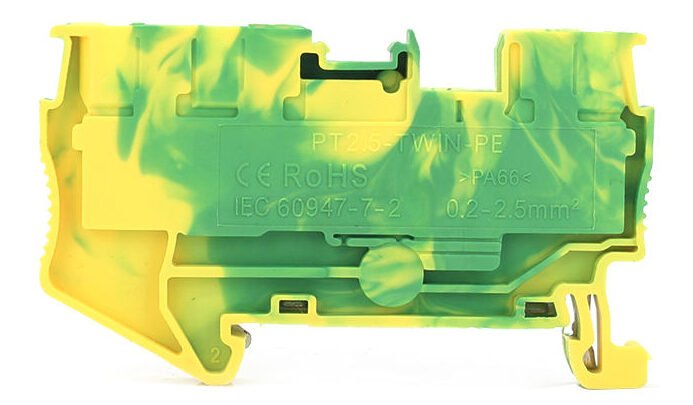

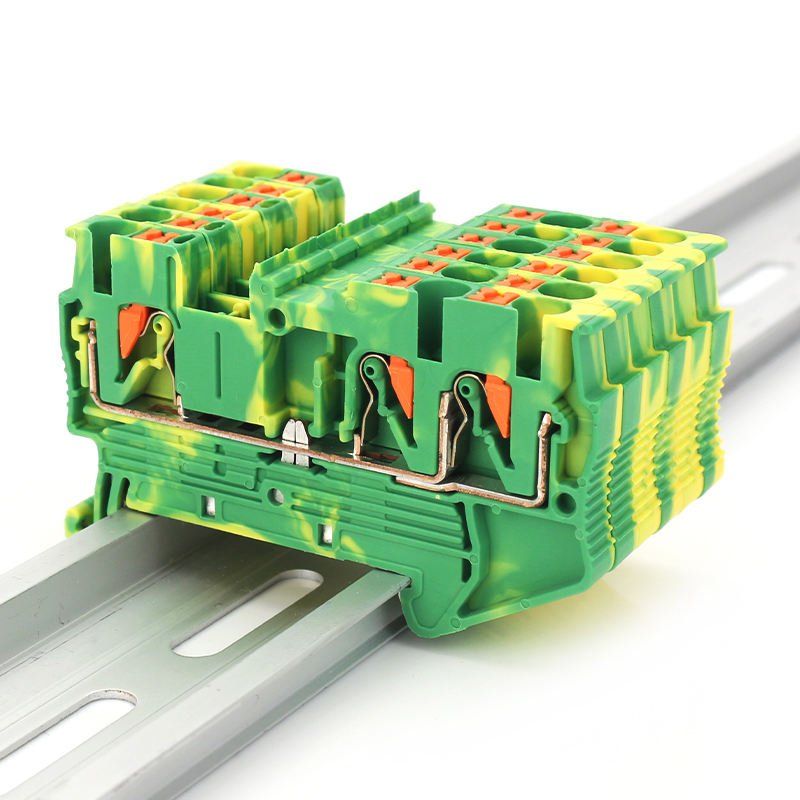

PT2.5-TWIN-PE
Model: PT2.5-TWIN-PE
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 60.7mm×35.5mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

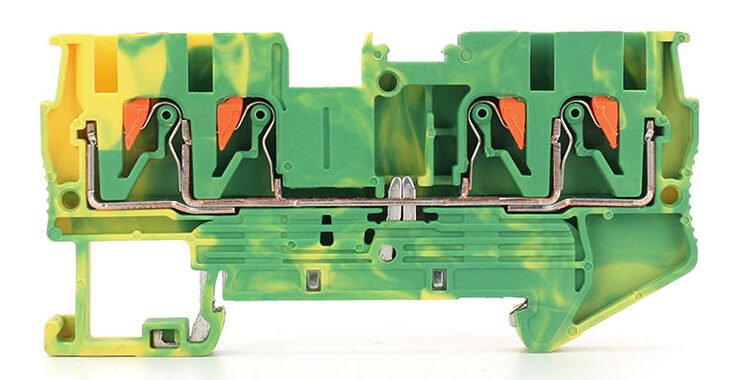

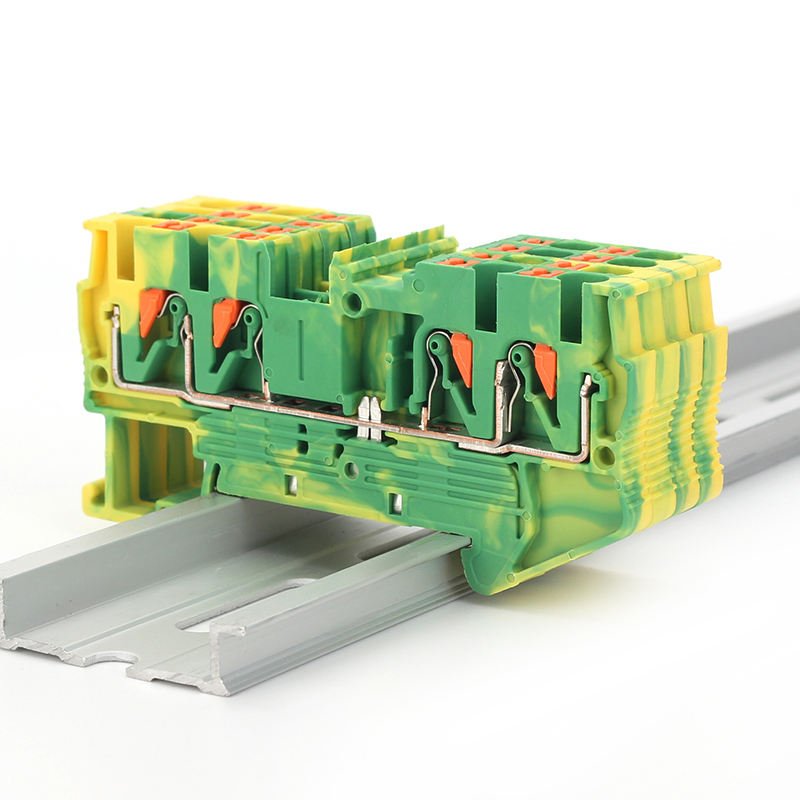

PT2.5-QUATTRO-PE
Model: PT2.5-QUATTRO-PE
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 72.7mm×35.5mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

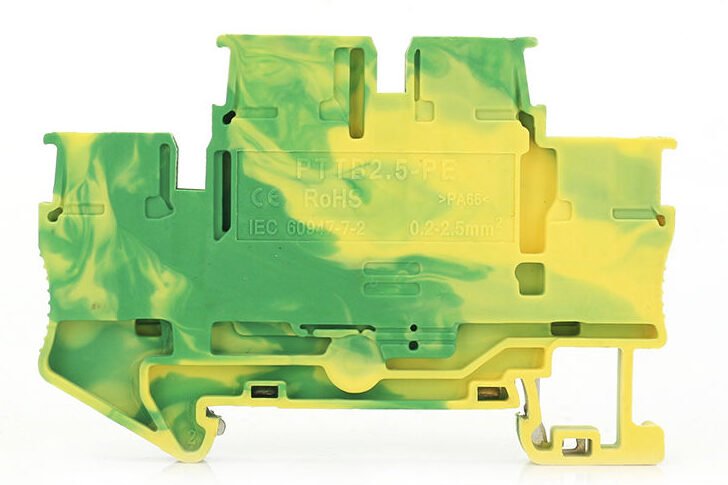

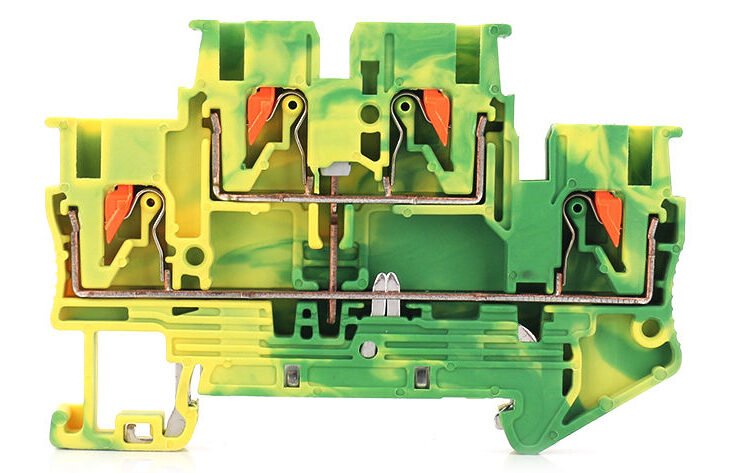

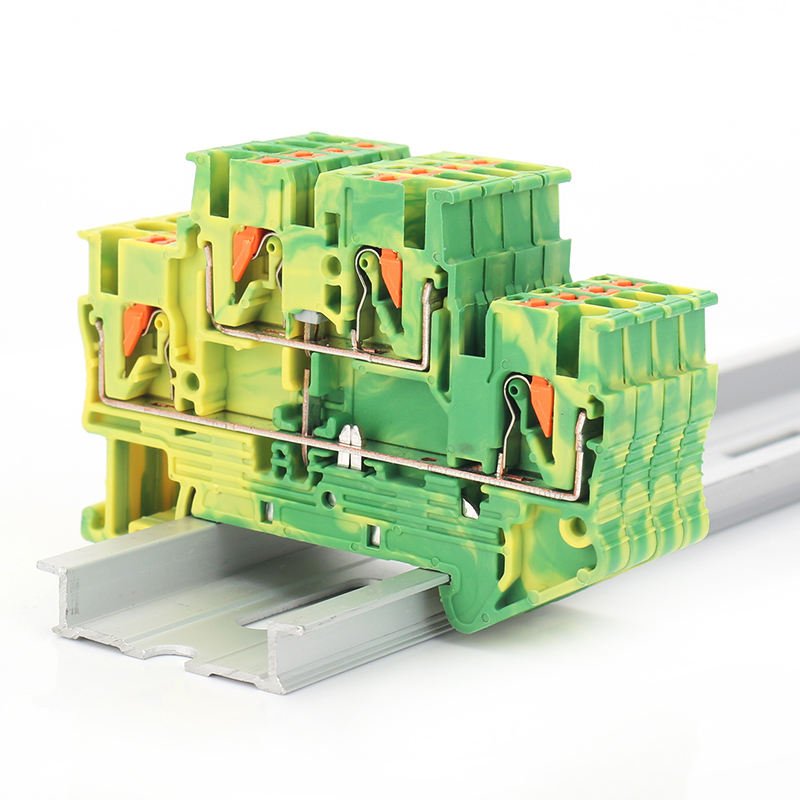

PTTB2.5-PE
Model: PTTB2.5-PE
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 68.3mm×45.8mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant

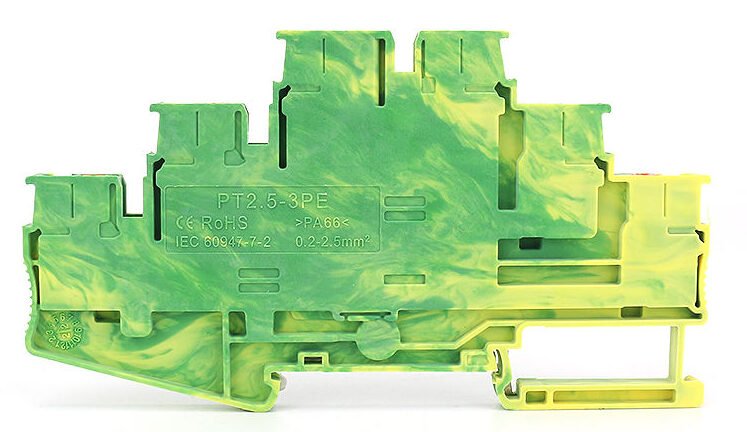

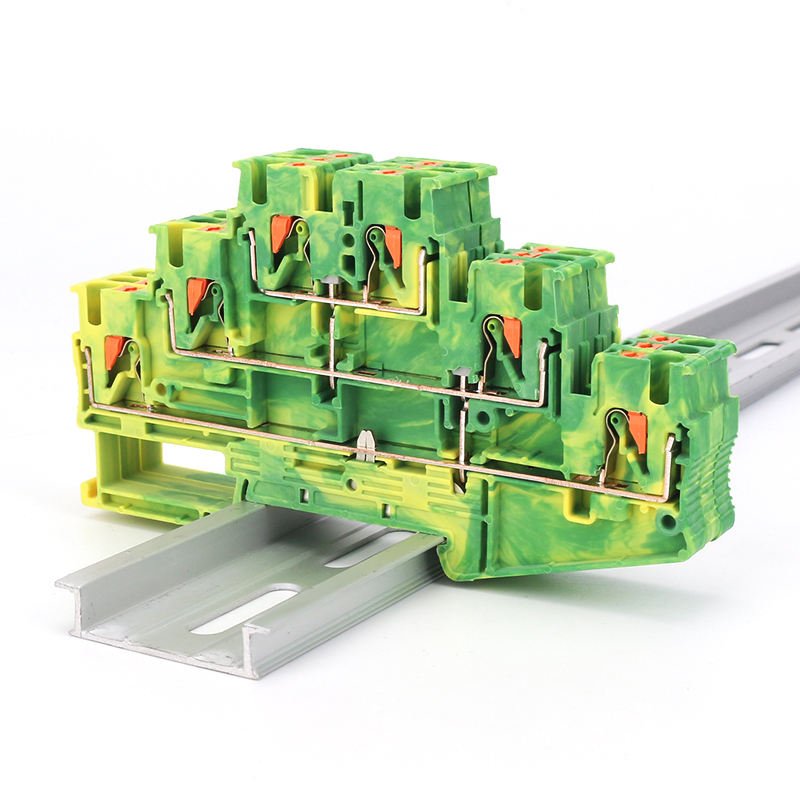

PT2.5-3PE
Model: PT2.5-3PE
Rated cross-section: 0.2-2.5mm²
Rated Current: 24A
Voltage: 800V
Length/Width/thickness: 68.3mm×45.8mm×5.2mm
Stripping length: 8-10mm
Connection method: Push-in
Contact material: Brass
Shell Material: PA66 nylon flame retardant
The Push-in direct connection technology reduces insertion forces by up to 50 percent and enables tool-free wiring, allowing conductors to be inserted easily and directly.
Made from engineering-grade nylon PA66 with a brass screw.
· The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
· The compact design and front connection enable wiring in a confined space.
In addition to the test connection on the double-function shaft, all terminal blocks provide an additional test connection.

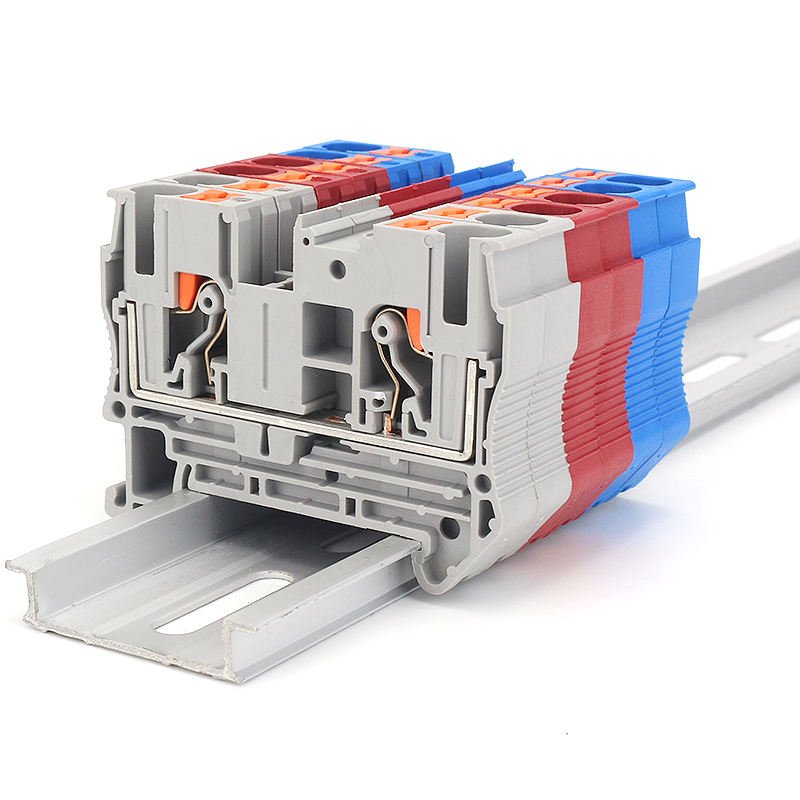

With a universal foot that can be installed on Din Rail NS 35.· It can connect two conductors with ease, even large conductor cross sections are not a problem.
· Electric potential distribution can use fixed bridges in the terminal center
· All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc
Compact size, lightweight,Dood toughness,The corner brackets are not easily broken,Easy to install
PT self-locking through-hole terminals are generally wired as follows: First, strip the appropriate length of insulation from the wire. Then, insert a single-strand hard wire or a multi-strand wire with a pre-crimped cold-pressed head directly into the terminal’s wiring hole.
The wire will be automatically clamped and maintained stably by the internal spring/self-locking mechanism. To disconnect the wire, press the terminal’s release mechanism and then pull out the wire.
