PTFIX-NS35A Junction box

PTFIX-NS35A Junction box
Categories , Tags , , , ,

Additional information

Place of Origin

Zhejiang,China
Model Number

PTFIX-NS35A
Color

grey
Mounting

Din rail
Material of Shell

Nylon PA66
Metal Material

Copper
Dimensions

45×10.2
ASK FOR A QUOTE

PTFIX series single-input multi-output splitter

1 in,3 out

Model
1 in,3 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx11.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,5 out

Model
1 in,5 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx16.5mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,7 out

Model
1 in,7 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx21.7mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,9 out

Model
1 in,9 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx27mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,11 out

Model
1 in,11 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx32.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,13 out

Model
1 in,13 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx37.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,15 out

Model
1 in,15 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx42.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,17 out

Model
1 in,17 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx47.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,19 out

Model
1 in,19 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx52.6mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,21 out

Model
1 in,21 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx58mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,23 out

Model
1 in,23 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
24A
Voltage
690V
Length/Width/High
29mmx63.3mmx21.5mm
Solid Wire
0.14-4mm²
Stranded Wire
0.14-2.5mm²
Stripping Length
8-10mm
Connection method
Push-in
Casing material
PA66

1 in,4 out

Model
1 in,4 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx20.6mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²(soft wire)
Connection method
Push-in
Casing material
PA66

1 in,6 out

Model
1 in,6 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx25.8mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²(soft wire)
Connection method
Push-in
Casing material
PA66

1 in,8 out

Model
1 in,8 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx31mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²(soft wire)
Connection method
Push-in
Casing material
PA66

1 in,10 out

Model
1 in,10 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx34mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²(soft wire)
Connection method
Push-in
Casing material
PA66

1 in,12 out

Model
1 in,12 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx41.3mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,14 out

Model
1 in,14 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx57mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,16 out

Model
1 in,16 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx51.7mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,18 out

Model
1 in,18 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx56.9mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,20 out

Model
1 in,20 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx62mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,22 out

Model
1 in,22 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx72.4mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

1 in,24 out

Model
1 in,24 out
Special color
Gray/Blue/Red/Yellow/Green
Rated Current
41A
Voltage
690V
Length/Width/High
29mmx82.8mmx22.3mm
Main wire connection range
0.5-10mm²(hard wire) / 0.5-6mm²（flexible wire）
Branch line hole wiring range
0.2-4mm²(hard wire) / 0.2-2.5mm²（soft wire)
Connection method
Push-in
Casing material
PA66

Why Choose Shengling PTFIX Distribution Blocks?

Shengling focuses on electrical connection products, delivering efficient and reliable solutions through stable quality and mature manufacturing processes.

For PTFIX distribution blocks, Shengling optimizes the design for practical installation needs, making wiring faster, safer, and more organized. The push-in connection allows tool-free wiring, greatly improving installation efficiency—ideal for control cabinets and compact distribution boxes.

Key advantages:

  • Fast wiring: Push-in design, no screws required
  • One-in, multiple-out: Simplifies wiring and keeps layouts neat
  • Flexible mounting: DIN rail compatible with secure fixing options
  • Safe and reliable: Quality conductive parts with durable insulation



Screw-fixing clips

The clips snap into the slots on both sides of the terminal for screw-fixing.

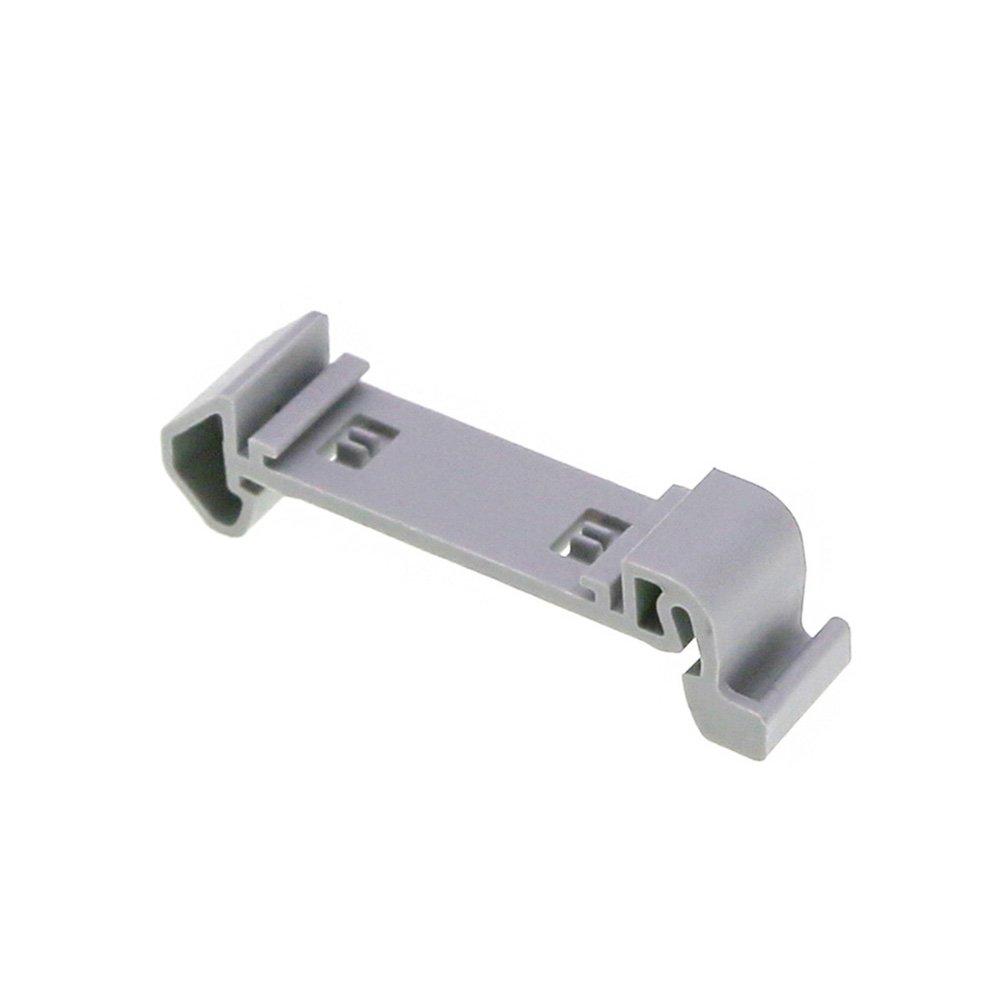

Guide rail buckle

Installation is complete once the terminals are snapped into the mounting base.

Horizontal mounting feet

Installation is complete by simply snapping the terminal into the mounting feet.

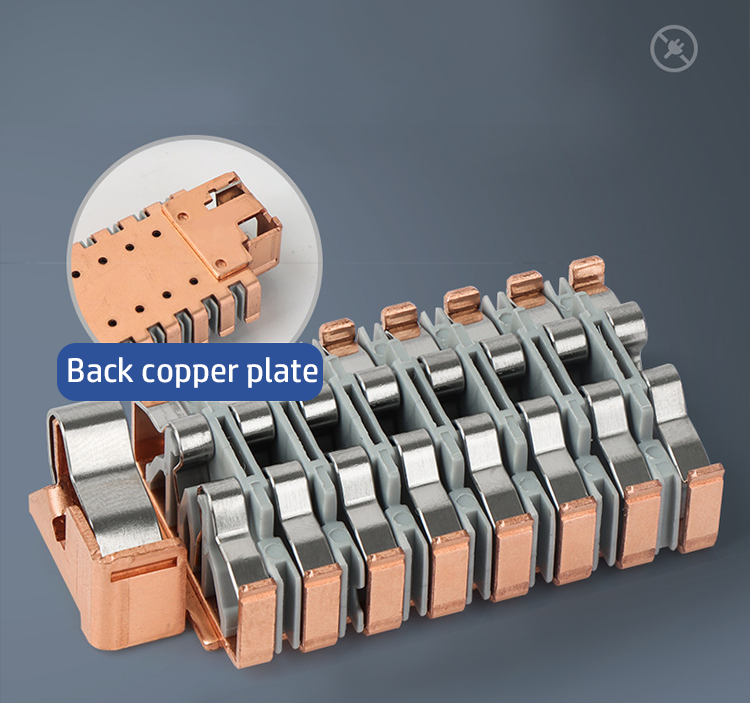

What materials are used internally in the PTFIX series one-input multiple-output splitter?

High conductivity, copper.

conductive plate. Made with a thickened copper conductive plate, it is oxidation-resistant and has excellent conductivity. Stainless steel spring clips ensure a tight, secure connection.

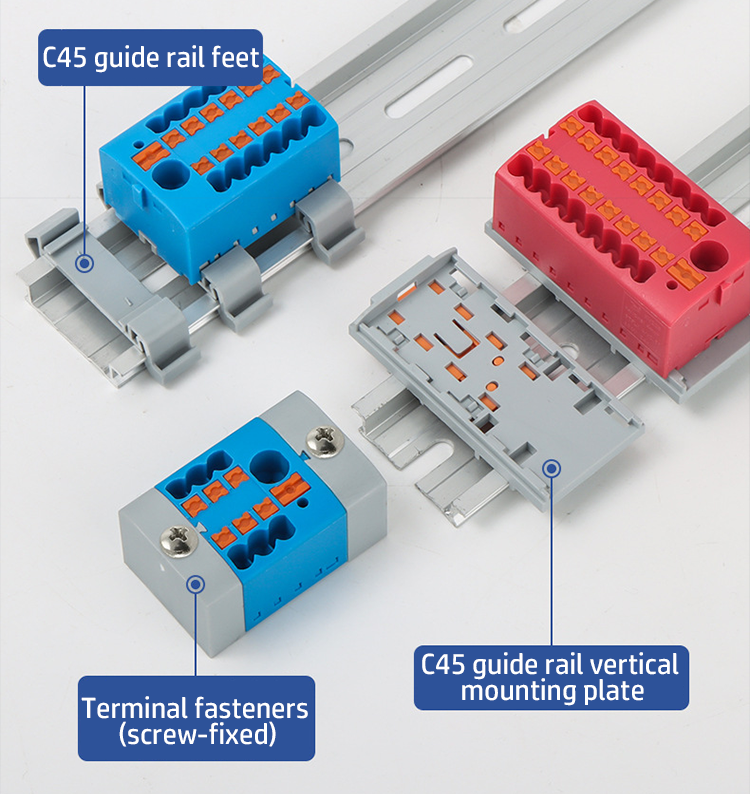

How to install the PTFIX series one-input multiple-output splitter on the guide rail?

PTFIX one-input multiple-output splitters are available in both horizontal and vertical mounting configurations.

The guide rail clips are secure and will not loosen. The installation method can be selected according to the environment, and screws can also be used for fixing.

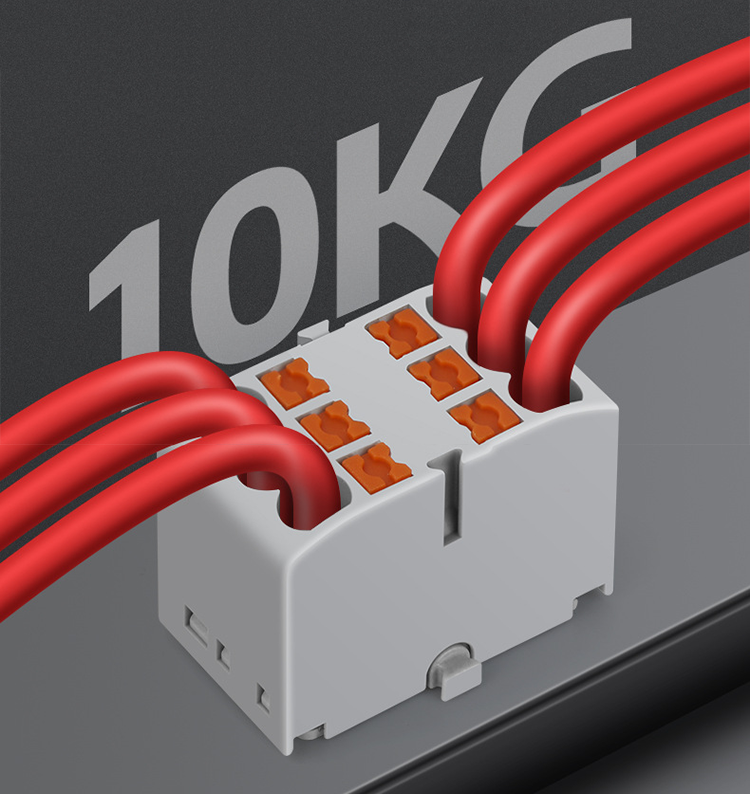

What other advantages do the PTFIX series single-input multi-output splitters have?

The wires are clamped tightly and will not come loose.

Strip 10mm² of wire and insert it all the way in, ensuring no exposed wires to prevent arcing; it can withstand a 10KG pulling force.

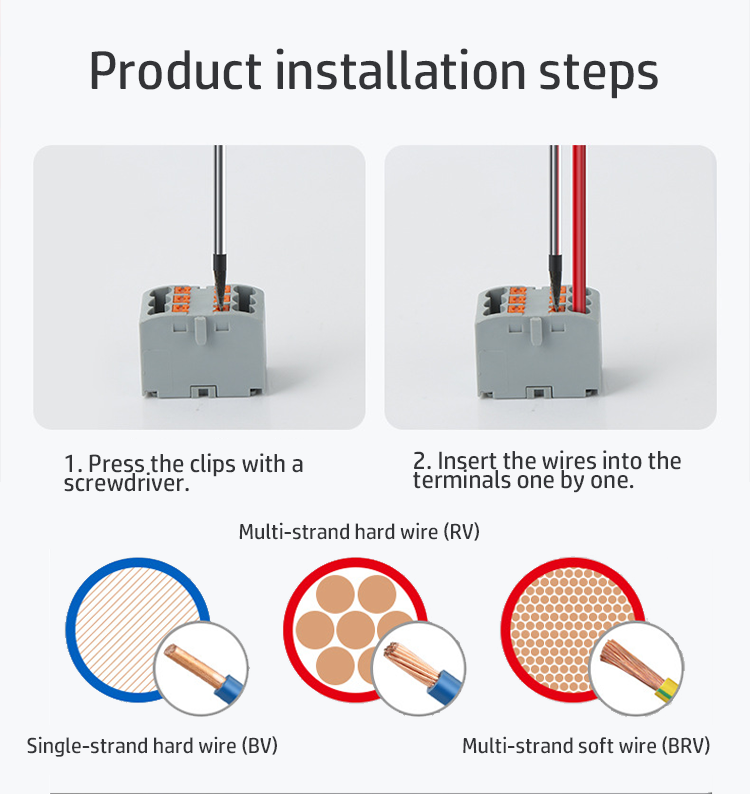

How to wire a PTFIX one-input, multiple-output splitter?

The PTFIX series single-input multi-output splitter is a direct-plug push-button design.

Safe, simple, easy to connect circuits, and improves space utilization.

Installation is very simple:

1. Press the clips with a screwdriver.
2. Insert the wires into the connection holes one by one.

PTFIX One-input Multiple-output Splitter Wiring Video

Want to see more terminal wiring videos?

Then follow me!

SMART TERMINAL SOLUTIONS

Empowering Electrical Connections With Innovation & Efficiency

Customized for R&D

  • Functional upgrades and structural optimizations
  • Dedicated mold design and rapid prototyping
  • Multi-scenario compatibility engineering

Certification and Support

  • International Compliance Documentation Guidance
  • Testing Organization Coordination and Standards Interpretation
  • Technical Documentation Localization

Flexible delivery

  • Finished Product/SKD Supply Options
  • Trial Order Verification Support
  • Priority Logistics from Key Ports

Loading PDF...

1 / 1

How to Maintain Terminal Blocks

Regular Inspection

  • Regularly inspect terminal blocks for signs of wear, corrosion, or loose connections.

Clean Terminal Blocks Regularly

  • Use a soft brush and compressed air to clean terminal blocks and remove any dirt, dust, or debris that may accumulate on the contact points.

If Any Loose Connection Is Found

  • If any connection becomes loose, use a screwdriver to tighten the screws to the manufacturer’s recommended torque value. This helps ensure a safe and reliable electrical connection.

Check for Overheating

  • Inspect terminal blocks for signs of overheating, such as discoloration or deformation. Overheating may be caused by excessive current or poor contact resistance, and should be addressed promptly to prevent further damage.

Always Use Properly Sized Terminal Blocks

  • Be sure to select the correct size and type of terminal block according to the application requirements. Using undersized terminal blocks may lead to overheating, poor contact, and other issues.

Troubleshoot Faulty Connections

  • If a faulty connection occurs, check the wiring for short circuits, open circuits, or incorrect positioning. Use a multimeter or other diagnostic tools to identify the root cause of the problem.

Follow the Manufacturer’s Guidelines

  • Always follow the terminal block manufacturer’s instructions for installation, operation, and maintenance to ensure safe and reliable performance.
