l With Push-in connection technology, you can connect conductors easily – both directly and without tools, insert forces reduced by 50%. it is suitable for various applications. Insert rigid conductors or conductors with ferrules from 0.25mm² into the conductor shaft. The contact spring opens automatically and provides the required pressure force against the current bar.
| Place of Origin | Zhejiang,China |
|---|---|

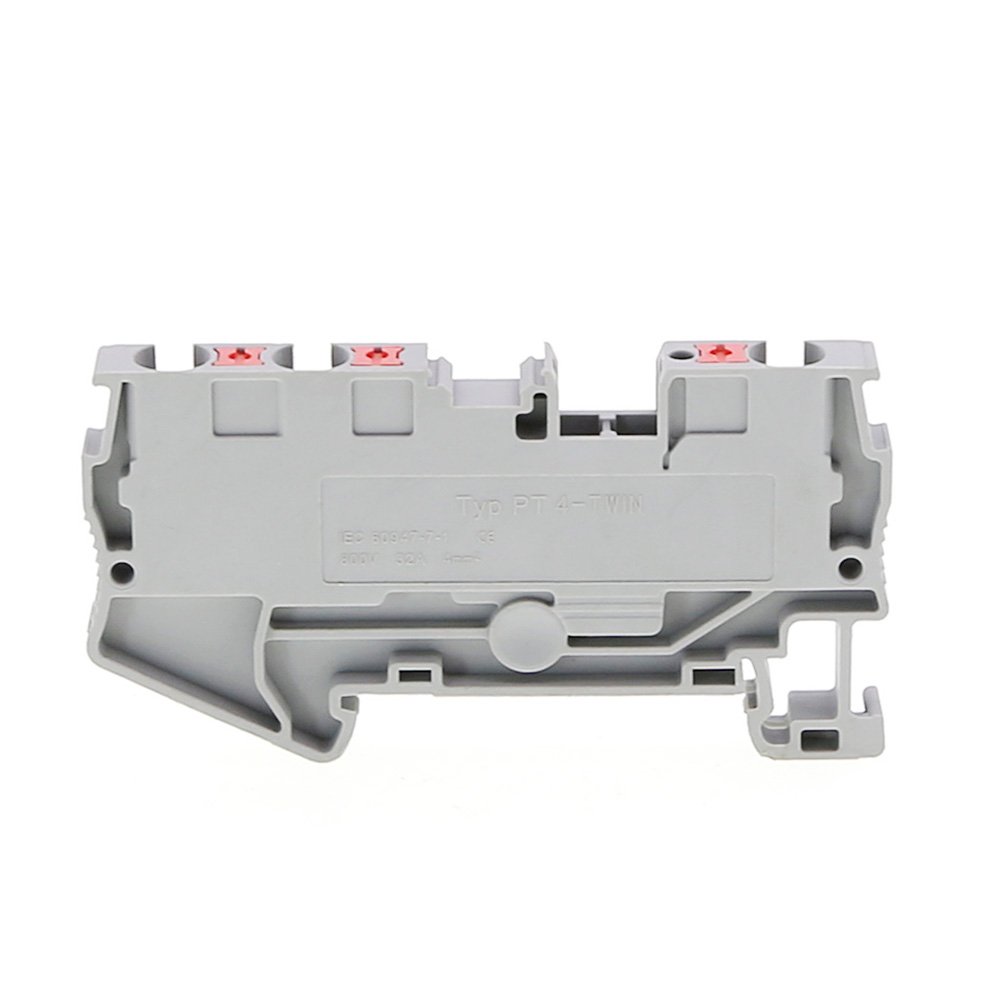

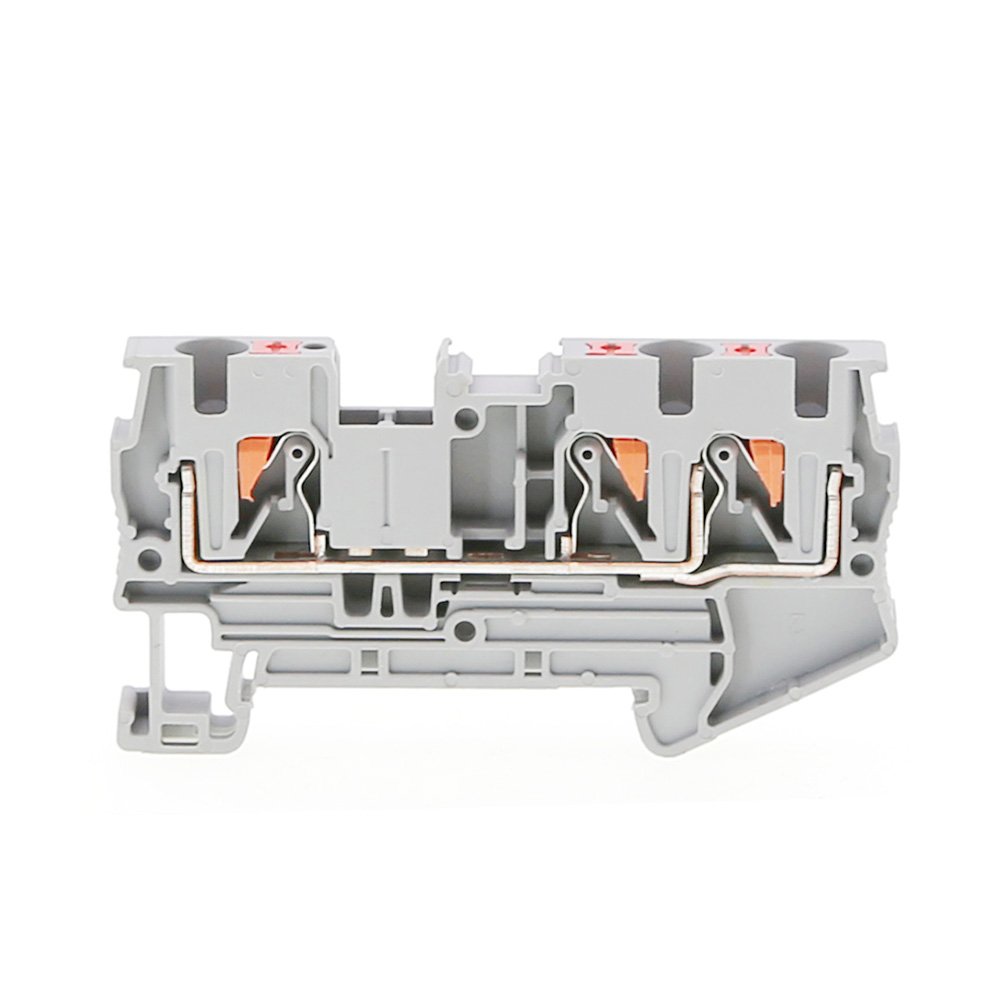

| Model Number | PT-4-TWIN |
| Rated Current | 32A |
| Rated Voltage | 800V |
| Connection Method | Push-In Connection |
| Color | grey |
| Mounting | Din rail |
| Dimensions | 66.9×35.5×6.2 |
| Material of Shell | Nylon PA66 |
| Metal Material | Brass |
| Stripping Length | 10-12mm |
Model | Rated current | Rated voltage | Rated cross-section | Wire striping length | Material | Size | Connection method |
PT-2.5 | 24A | 800V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 49*35.3*5.2 | Plug-In |
PT-2.5-TWIN | 24A | 800V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 60.7*35.5*5.2 | Plug-In |
PT-2.5-QUATTRO | 24A | 800V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 72.7*35.5*5.2 | Plug-In |
PTTB2.5 | 22A | 500V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 68.3*45.8*5.2 | Plug-In |
PTTB2.5-PV | 22A | 500V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 68.3*45.8*5.2 | Plug-In |
PT2.5-3PV | 20A | 500V | AWG26-12 | 8-10mm | Brass/NylonPA66 | 103.5*57*5.2 | Plug-In |
PT2.5-3L | 20A | 500V | AWG24-10 | 8-10mm | Brass/NylonPA66 | 103.5*57*5.2 | Plug-In |
PT-4 | 32A | 800V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 56*35.5*6.2 | Plug-In |
PT4-TWIN | 32A | 800V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 66.9*35.5*6.2 | Plug-In |
PT4-QUATTRO | 32A | 800V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 77.3*35.5*6.2 | Plug-In |
PTTB4 | 28A | 500V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 84.1*46.1*6.2 | Plug-In |
PTTB4-PV | 28A | 500V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 84.4*46*6.2 | Plug-In |
PTME-4 | 24A | 500V | AWG24-10 | 10-12mm | Brass/NylonPA66 | 70.6*49.2*6.2 | Plug-In |
PT-6 | 41A | 1000V | AWG20-8 | 10-12mm | Brass/NylonPA66 | 58*42.4*8.2 | Plug-In |
PT6-TWIN | 41A | 1000V | AWG20-8 | 10-12mm | Brass/NylonPA66 | 74.2*42.2*8.2 | Plug-In |
PT6-QUATTRO | 41A | 1000V | AWG20-8 | 10-12mm | Brass/NylonPA66 | 90.3*42.2*8.2 | Plug-In |
PT-10 | 57A | 1000V | AWG20-6 | 18-20mm | Brass/NylonPA66 | 67.9*49.8*10.2 | Plug-In |
PT10-TWIN | 57A | 1000V | AWG20-6 | 18-20mm | Brass/NylonPA66 | 89.2*49.8*10.2 | Plug-In |
PT-16 | 76A | 1000V | AWG20-4 | 18-20mm | Brass/NylonPA66 | 75.5*52.5*12.2 | Plug-In |
PT16-TWIN | 76A | 1000V | AWG20-4 | 18-20mm | Brass/NylonPA66 | 100.5*52.5*12.2 | Plug-In |
PT1.5-TWIN | 17.5A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 45.4*30.9*3.5 | Plug-In |
PT1.5 | 17.5A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 54.1*30.5*3.5 | Plug-In |
PT1.5-QUATTRO | 17.5A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 63.2*30.5*3.5 | Plug-In |
PTTB1.5 | 17.5A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 65.5*41*3.5 | Plug-In |
PTTB1.5-PV | 17.5A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 65.5*41*3.5 | Plug-In |
PT1.5-3L | 15A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 97.5*51.6*3.5 | Plug-In |
PT1.5-3PV | 15A | 500V | AWG26-14 | 8-10mm | Brass/NylonPA66 | 97.5*51.6*3.5 | Plug-In |
PT2.5-PE | / | / | AWG26-12 | 8-10mm | Brass/NylonPA66 | 48.8*35.4*5.2 | Plug-In |
PT2.5-TWIN-PE | / | / | AWG26-12 | 8-10mm | Brass/NylonPA66 | 60.7*35.5*5.2 | Plug-In |
PT2.5-QUATTRO-PE | / | / | AWG26-12 | 8-10mm | Brass/NylonPA66 | 72.7*35.5*5.2 | Plug-In |
PTTB2.5-PE | / | / | AWG26-12 | 8-10mm | Brass/NylonPA66 | 68.3*45.8*5.2 | Plug-In |
PT2.5-3PE | / | / | AWG26-12 | 8-10mm | Brass/NylonPA66 | 103.5*57*5.2 | Plug-In |
PT4-PE | / | / | AWG26-10 | 10-12mm | Brass/NylonPA66 | 56*35.5*6.2 | Plug-In |
PT4-TWIN-PE | / | / | AWG24-10 | 10-12mm | Brass/NylonPA66 | 66.9*35.5*6.2 | Plug-In |
PT4-QUATTRO-PE | / | / | AWG24-10 | 10-12mm | Brass/NylonPA66 | 77.1*35.5*6.2 | Plug-In |
PTTB4-PE | / | / | AWG24-10 | 10-12mm | Brass/NylonPA66 | 84.4*46*6.2 | Plug-In |
PT6-PE | / | / | AWG20-8 | 10-12mm | Brass/NylonPA66 | 58*42.4*8.2 | Plug-In |
PT6-TWIN-PE | / | / | AWG20-8 | 10-12mm | Brass/NylonPA66 | 74.2*42.2*8.2 | Plug-In |
PT6-QUATTRO-PE | / | / | AWG20-8 | 10-12mm | Brass/NylonPA66 | 90.3*42.2*8.2 | Plug-In |
PT10-PE | / | / | AWG20-6 | 18-20mm | Brass/NylonPA66 | 67.9*49.8*10.2 | Plug-In |
PT10-TWIN-PE | / | / | AWG20-6 | 18-20mm | Brass/NylonPA66 | 88.9*49.8*10.2 | Plug-In |
PT16-PE | / | / | AWG20-4 | 18-20mm | Brass/NylonPA66 | 75.5*52.5*12.2 | Plug-In |
PT16-TWIN-PE | / | / | AWG20-6 | 18-20mm | Brass/NylonPA66 | 100.5*52.5*12.2 | Plug-In |
PT1.5-PE | / | / | AWG26-14 | 8-10mm | Brass/NylonPA66 | 46.6*30.6*3.5 | Plug-In |
PT1.5-TWIN-PE | / | / | AWG26-14 | 8-10mm | Brass/NylonPA66 | 54.1*30.5*3.5 | Plug-In |
PT1.5-QUATTRO-PE | / | / | AWG26-14 | 8-10mm | Brass/NylonPA66 | 63.2*30.5*3.5 | Plug-In |
PTTB1.5-PE | / | / | AWG26-14 | 8-10mm | Brass/NylonPA66 | 65.4*41*3.5 | Plug-In |
PT1.5-3PE | / | / | AWG26-14 | 8-10mm | Brass/NylonPA66 | 97.5*51.6*3.5 | Plug-In |
PTV2.5 | 24A | 800V | / | / | Brass/NylonPA66 | 51.2*35.6*5.2 | Plug-In |
PTU | 24A | 800V | / | / | Brass/NylonPA66 | 45*36*5.2 | Plug-In |
The Push-in direct connection technology reduces insertion forces by up to 50 percent and enables tool-free wiring, allowing conductors to be inserted easily and directly.
Made from engineering-grade nylon PA66 with a brass screw.
· The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
· The compact design and front connection enable wiring in a confined space.
In addition to the test connection on the double-function shaft, all terminal blocks provide an additional test connection.
With a universal foot that can be installed on Din Rail NS 35.· It can connect two conductors with ease, even large conductor cross sections are not a problem.
· Electric potential distribution can use fixed bridges in the terminal center
· All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc
Compact size, lightweight,Dood toughness,The corner brackets are not easily broken,Easy to install
PT self-locking through-hole terminals are generally wired as follows: First, strip the appropriate length of insulation from the wire. Then, insert a single-strand hard wire or a multi-strand wire with a pre-crimped cold-pressed head directly into the terminal’s wiring hole.
The wire will be automatically clamped and maintained stably by the internal spring/self-locking mechanism. To disconnect the wire, press the terminal’s release mechanism and then pull out the wire.
