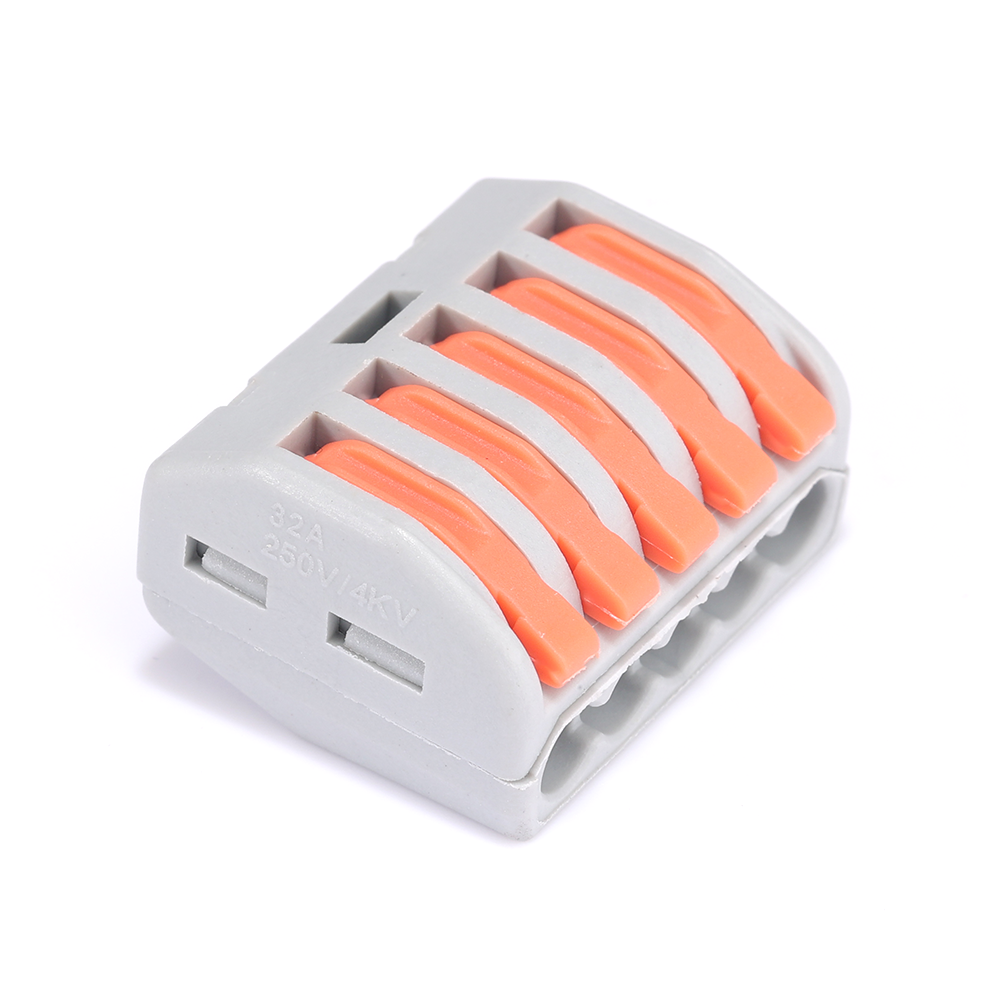

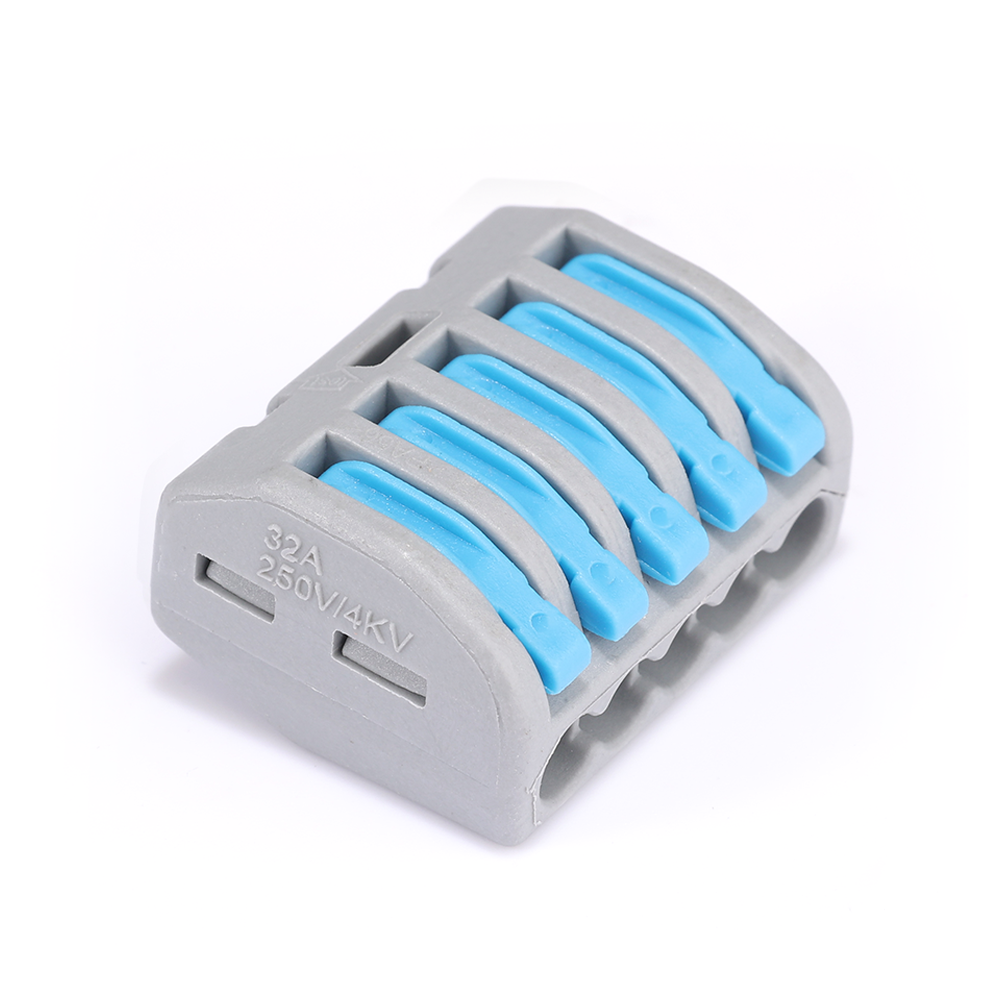

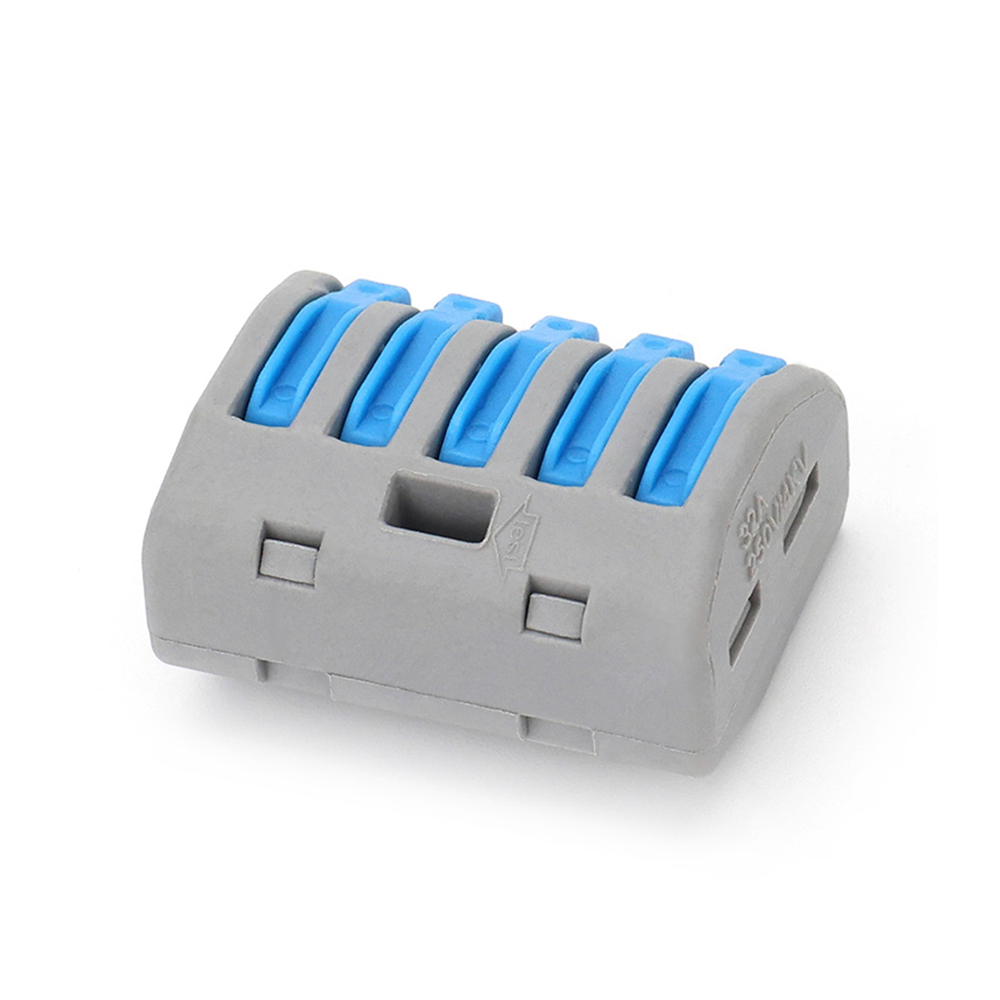

A quick connector is a kind of commonly used Electrical connector, which is characterized by quick plugging and reliable connection.
| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | PCT-215 |
| Color | Blue, orange, transparent |
| Mounting | Push-In Connection |
| Rated Current | 32A |
| Rated Voltage | 250V |
| Dimensions | 20.5×26.6×14.5 |
| Stripping Length | 9-10mm |
| Material of Shell | Nylon PA66 |
| Metal Material | Copper |
Usually, only a few simple steps are needed — strip the wire, insert it, and press — and one connection can be completed in just a few seconds.
Compared with some traditional connection methods that may be poorly tightened or improperly installed on site, this structure helps reduce heat generation and improve overall electrical stability.
Mainstream PCT models usually support solid conductors from about 0.75–2.5 mm², which covers most common household wire sizes.
The housing of PCT quick wiring terminal blocks is usually made of flame-retardant engineering plastic and tested for voltage resistance and insulation performance, providing reliable insulation protection under normal household 220V conditions.
PCT quick wiring terminal blocks are compact in structure, take up less space, and make cable organization easier, resulting in a neater and cleaner installation.
Model | Rated current | Rated voltage | solid wire | stranded wire | Size | Material | Specifications |
PCT-212 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 20.5*12.4*14.5 | nylon(PA66)/Copper | 1 in 1 out |
PCT-213 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 20.5*17*14.5 | nylon(PA66)/Copper | 1 in 2 out |
PCT-214 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 20.5*21.6*14.5 | nylon(PA66)/Copper | 1 in 3 out |
PCT-215 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 20.5*26.6*14.5 | nylon(PA66)/Copper | 1 in 4 out |
PCT-218 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 20.5*40.5*14.5 | nylon(PA66)/Copper | 1 in 7 out |
PCT-222 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 38.2*12.5*14.5 | nylon(PA66)/Copper | 2 in 2 out |
PCT-223 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 38.2*17.8*14.5 | nylon(PA66)/Copper | 3 in 3 out |
PCT-224 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 38.2*23.7*14.5 | nylon(PA66)/Copper | 4 in 4 out |
PCT-225 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 39.2*28.6*14.5 | nylon(PA66)/Copper | 5 in 5 out |
PCT-121 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 42.7*8.17*30.8 | nylon(PA66)/Copper | 1 in 1 out |
PCT-222D | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 42.7*13.4*30.8 | nylon(PA66)/Copper | 2 in 2 out |
PCT-223D | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 42.7*18.3*30.5 | nylon(PA66)/Copper | 3 in 3 out |
PCT-221A | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 40*8*14.5 | nylon(PA66)/Copper | 1 in 1 out |
PCT-221T | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 40*8*14.5 | nylon(PA66)/Copper | 1 in 1 out |
PCT-221 | 32A | 250V | 0.08-2.5mm² | 0.08-4.0mm² | 40*8*14.5 | nylon(PA66)/Copper | 1 in 1 out |
PCT-412 | 32A | 250V | 0.08-4.0mm² | 0.08-4.0mm² | 18*12.5*9.5 | nylon(PA66)/Copper | 1 in 1 out |
PCT-413 | 32A | 250V | 0.08-4.0mm² | 0.08-4.0mm² | 18*18.5*9.5 | nylon(PA66)/Copper | 1 in 2 out |
PCT-414 | 32A | 250V | 0.08-4.0mm² | 0.08-4.0mm² | 18*24.5*9.5 | nylon(PA66)/Copper | 1 in 3 out |
PCT-415 | 32A | 250V | 0.08-4.0mm² | 0.08-4.0mm² | 18*30*9.5 | nylon(PA66)/Copper | 1 in 4 out |
Features:
Quick Wire Connector
A quick connector is a kind of commonly used Electrical connector, which is characterized by quick plugging and reliable connection. It is widely used in various electronic devices, such as computers, mobile phones, televisions, audio systems, etc. Quickconnectors can quickly connect and disconnect circuits, making it convenient for users to carry out production operations, improving production efficiency and safety.
This quick connector is easy and fast to install. The wire gauge is suitable for wire sizes ranging from 0.5 to 4.0 square millimeters. The stripping length is 10-12mm. First, push open the handle at the incoming end, insert the wire, and then press the handle. Disassembly is also very convenient; just push the handle open. Generally speaking, installation can be completed in 3-5 seconds. Simple and practical, saving a lot of work time.
Push in Wire Connectors
◆Poly carbonate, UL 94V-0 flame-retardant shell.
◆Stainless steel elastic plate, high-conductivity copper plate to connect wires.
◆Insert wires after peeling the coat.
◆Suitable for solid wire and strand wire, reusable (can insert wires of a bigger diameter than the ones stripped out)
◆Suitable for fixing wires for lighting and electrical construction.
