The combination screws are directly crimped, resulting in a simple structure and easy observation of the connection status.The spring washers in the combination screws deform during tightening, achieving a self-locking function.The wiring range is from 0.75mm² to 35mm².
| Place of Origin | Zhejiang,China |
|---|---|

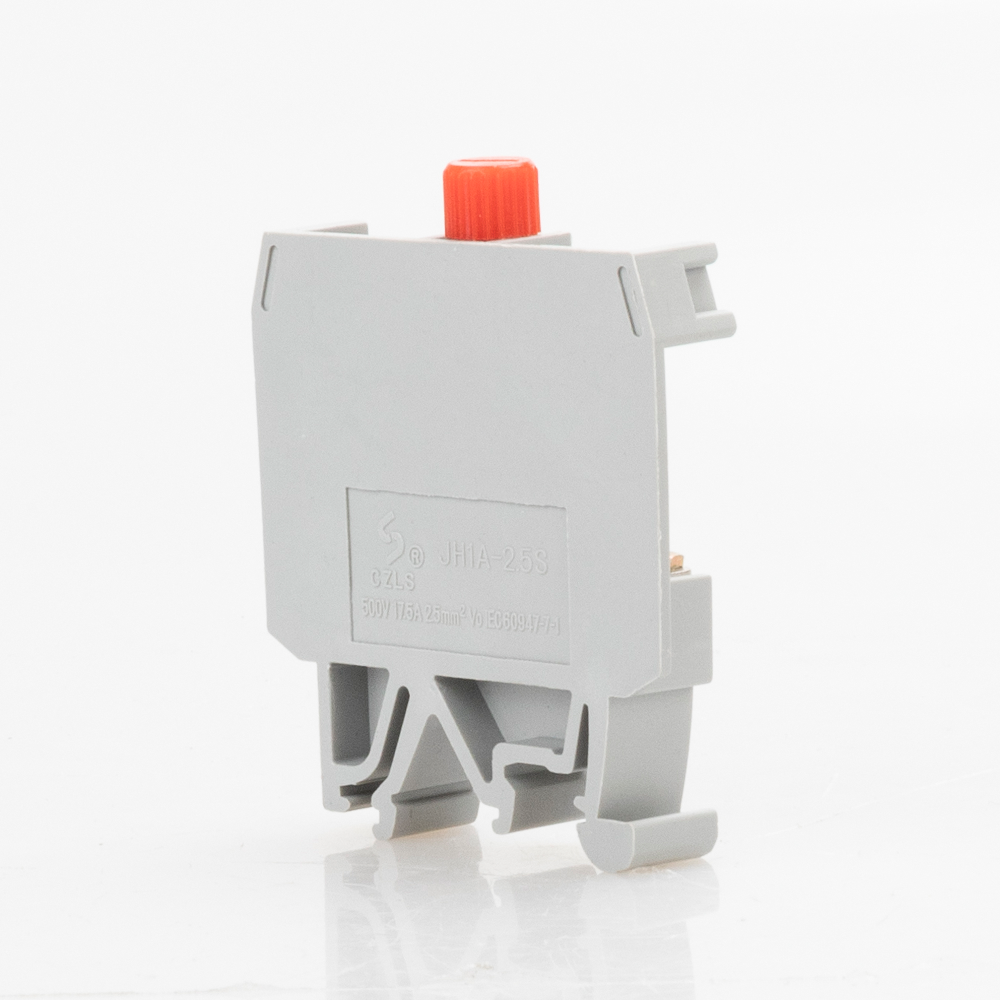

| Model Number | JH1A-2.5S |
| Color | grey |
| Mounting | Screw |
| Rated Current | 17.5A |
| Rated Voltage | 500V |
| Material of Shell | PC |
| Metal Material | brass conductor |
| Dimensions | 54×63.5×12 |
Features:
High-quality imported insulation materials
The insulation material uses original imported nylon PA66, ensuring excellent insulation, flame retardancy, toughness, and aging resistance.
It has strong corrosion resistance and its performance will not be reduced by the presence of termites, anaerobic bacteria, or fungi. It also exhibits excellent resistance to most oils and greases, alcohol, carbon tetrachloride, and other common detergents.
Convenient and flexible installation methods
The mounting feet are suitable for two mounting rail installation methods, with selectable rail widths of 35mm and 28mm.
When mounted on a 35mm rail, the unique mounting feet allow for easy installation and removal of the terminal from both sides.
When mounted on a 28mm rail, the terminal can only slide out from both ends of the rail, minimizing the risk of damage.
Usage conditions
>Ambient Temperature: -25°C to +55°C
>Relative Humidity: 90%
>Altitude: The altitude of the installation site should not exceed 2000m. For terminal blocks used at altitudes above 2000m, the effects of air cooling and the decrease in dielectric strength need to be considered, and the rated voltage will be correspondingly reduced.
>Installation Category: Class
>Pollution Degree: Level 3
Meets standards
> GB/T14048.7/8/18
> IEC60947-7-1/-2/-3
> UL1059

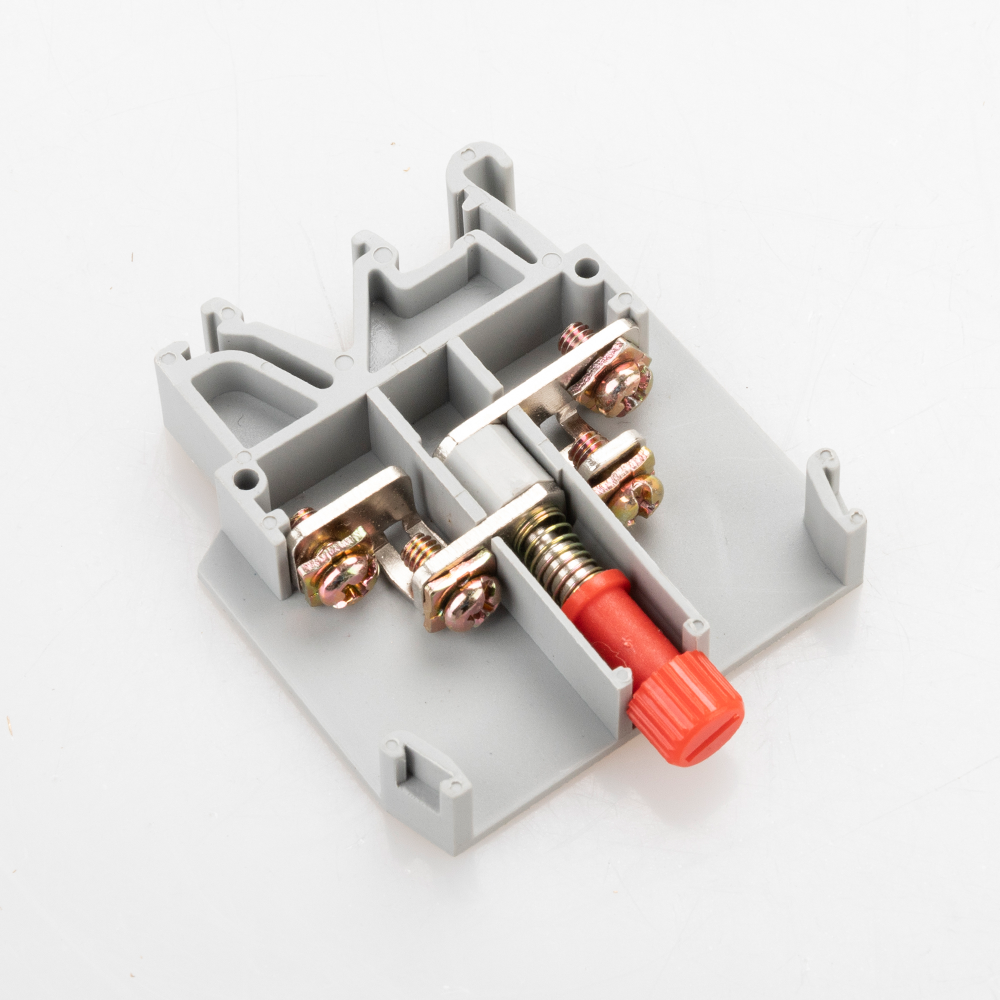

Quenching nickel-plated screws has high torque and is not easy to slip.
The thickened pure copper conductive sheet is corrosion-resistant, reliable in contact, and highly conductive.
High-quality,flame-retard ant shell with good toughness and non-stop feet
1：Peel off the insulation layer of the wire and insert the wire into the terminal.
2：Use a screwdriver to rotate counterclockwise to open the crimping frame.
3：Put the wire into the depth of the crimping frame.
4：Tighten the crimping frame clockwise and snap it tightly.
