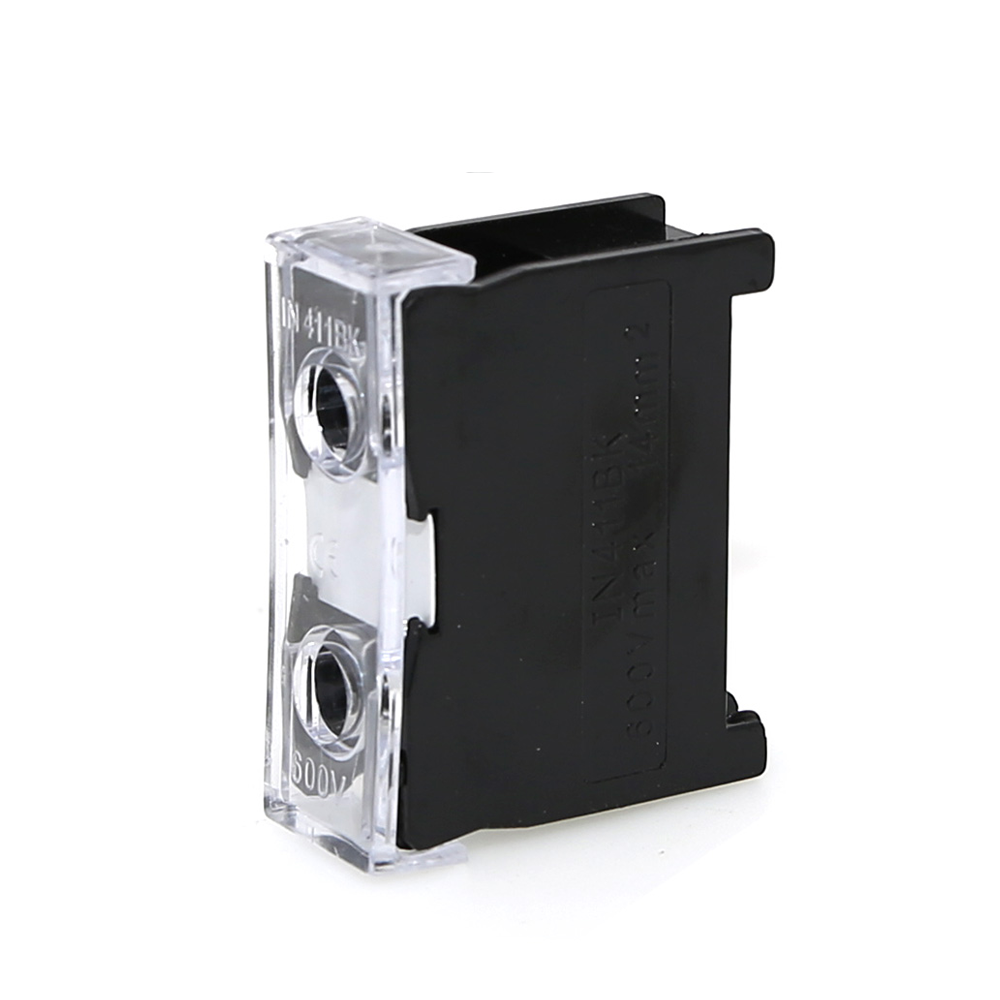

IN Terminal Blocks Quick Connect Excellent Conductivity Terminal Block for Automotive Use.The housing and cover are made of flame-retardant material, providing insulation and flame resistance to ensure safe use. The surface parameters are clearly marked.
| Place of Origin | Zhejiang,China |
|---|---|
| Model Number | IN-411 |
| Color | black |
| Mounting | Screw |
| Rated Current | 50A |
| Rated Voltage | 600V |
| Wire section(mm²) | 8-14mm² |
| Material of Shell | PC |
| Metal Material | brass conductor |
| Operating temperature | Operation -55~40 °C Storage -55~110 °C |
| Block Function | Feed-Through/Disconnect/Ground |
| Wire Size | 6~26 AWG |
Features:

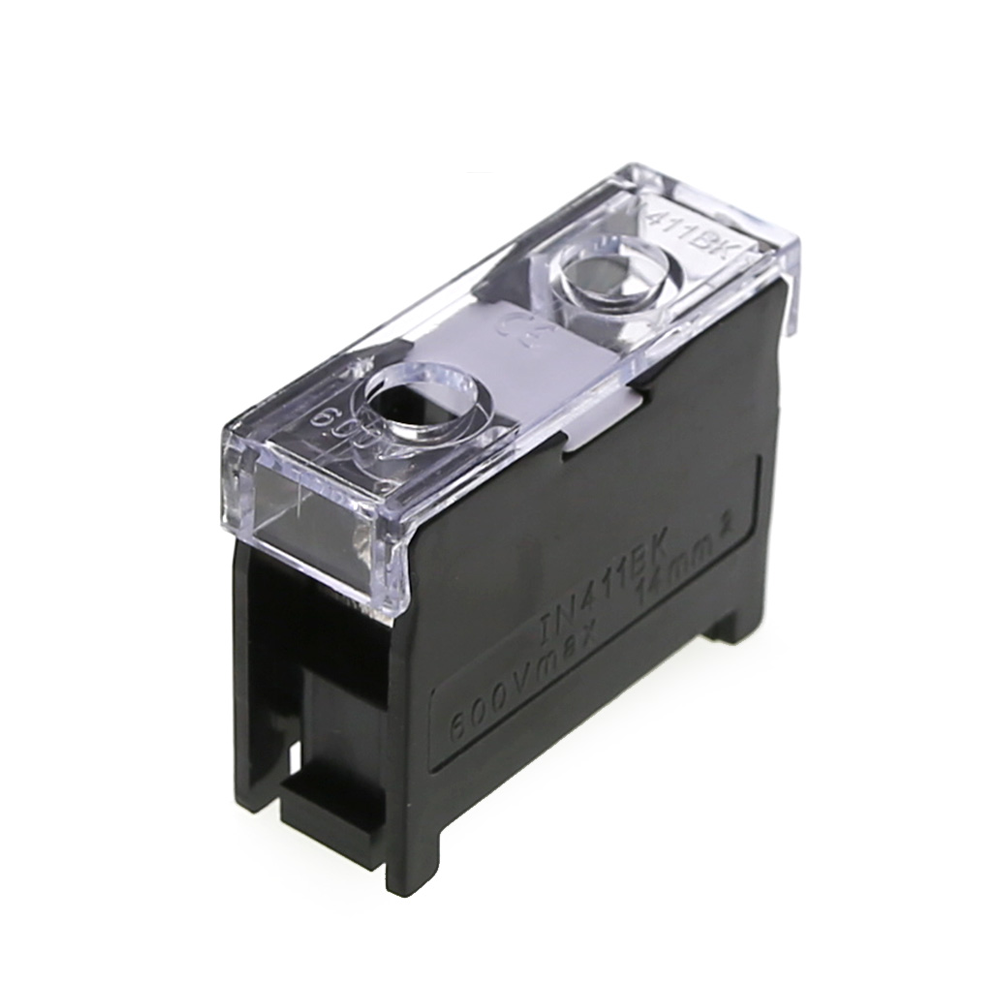

The transparent protective cover allows you to see clearly, prevents dust, is sturdy and durable, and easily solves the problem of tangled wires.
The terminal blocks are made of thermosetting plastic, which offers high safety and excellent insulation.
The screw washers are thick and won’t loosen, ensuring a secure and reliable fit with good electrical conductivity.
In the electric connection, using the terminal as the transition connection is a common connection method. In various connection terminal structures, using the plate connection method, a long-standing practice test, a safe and reliable connection way. The correct choice of wiring mode mainly depends on the actual use needs and the use of the requirements of the environmental conditions. Plate crimp wiring is direct, convenient, solid, and reliable.
1：Prepare IN terminal connecting wire screwdriver
2：Place the crimped wire into the screw
3：The wiring is now complete
